Multiple time ranges for selection, suitable for a wide array of applications
Sealed membrane button, dustproof and humidity-proof
Various input/output time operation methods, suitable for various products
Superior quality and reliable
‧Applications:
Baking ovens
Food processing machinery
General consumer electrical appliances
Ozone machines
Various testing equipment
Automated machinery

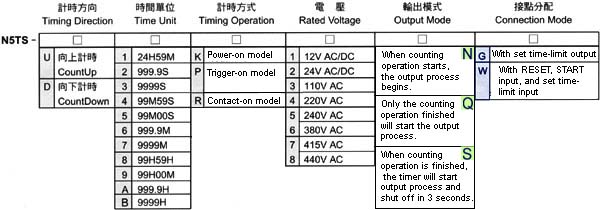

‧Time operation sequence descriptions :
Module K: Power-on model
Module P:Trigger-on model
Module R:Contact-on model
When turning on the power, the timer will follow the original setting values and start to countdown till the display shows zero.
Then, the display will list reset values and start to countdown accordingly.
Press R/S button to start countdown sequence. When counting, settings can't be overridden.
After counting is finished, press R/S button to return to the original values. Press R/S button again for restart counting sequence.
If users press R/S button while the timer is in countdown sequence, the countdown sequence will continue and users can check the original value at the same time.
When turning on the power, the timer will display the previous setting values before starting the countdown sequence (users can reset values at this moment).
After pressing the START switch, the timer will start the countdown sequence till the display shows zero.
After starting the countdown sequence, Users can't change setting values.
‧Output:
Module N
Module Q
Module S
When counting operation starts, the output process begins.
If users press the "STOP" button during the counting operation, the counting operation and output process will stop immediately.
Even though the counting process finished at the time of pressing "STOP" button, the output process will stop.
Only the counting operation finished will start the output process.
Count up operation: the timer will count up from 0 to the setting value and starts output process.
Countdown operation: the timer will countdown from the setting value to 0 and starts output process.
When counting operation is finished, the timer will start output process and shut off in 3 seconds.
‧Specifications:
‧Standard Voltage
AC/DC 12V,110VAC, 240VAC, 415VAC
AC/DC 24V,220VAC, 380VAC, 440VAC
‧Machinery Durability:5 X 10 6 times
‧Electrical Appliances Durability10 5
‧Power ExhaustAC: about3W DC:about 3W
‧Connection Capacity
Thermal(lth): 16A/250V AC
Resistive Load: 16A/250V AC
Lighting Load :8A/250V AC
Direct Current 1A/24V DC
‧Operating Temperature: -10°C~+50°C
‧Operating humidity45 ~ 85%RH
‧Weight :about 60g
‧Dimensions :(HxWxD) 48 x 48 x 78 mm
‧Mounting hole dimensions : 45 x 45 mm
‧With fully charged batteries,the timeer can operate 500 hours in the event of powerfailure.
‧Socket View :
Module G:Power-on model With set time-limit output
Module W:Contact-on model With RESET, START input, and set time-limit input
