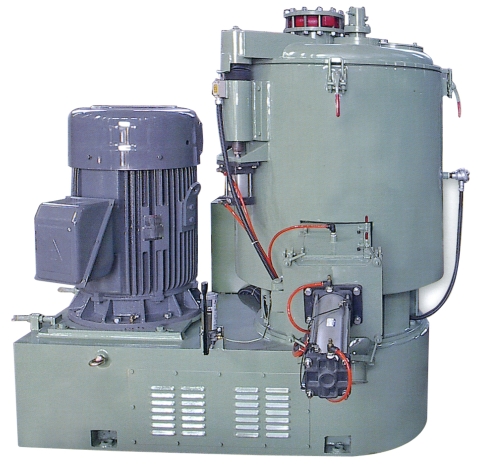

HIGH-SPEED MIXER
- Model:
- YH-HSM200L, YH-HSM300L, YH-HSM500L, YH-HSM1000L
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
1. Adopts pole changeable 2 steps speed motor to drive for large volume material mixing. Also can use stepless, variable speed motor with inverter for different speed adjustment with different material characters.
2. Cover is equipped with attachments for feed mixing with liquid or powder form.
3. The machine is mainly using for blending dry PVC with rigid or Themoable poly plastic, ABS, PP, PE, Pigments...etc, are also applicable.
MODEL︰YH-HSM200L
Tank Capacity︰200L
Blending Capacity︰35~40 kgs
Power︰60 HP
Blending Cycle Perhour︰7~10
Machine weight︰1900 kgs
MODEL︰YH-HSM300L
Tank Capacity︰300L
Blending Capacity︰70~85 kgs
Power︰100 HP
Blending Cycle Perhour︰7~10
Machine weight︰2130 kgs
MODEL︰YH-HSM500L
Tank Capacity︰500L
Blending Capacity︰116~140 kgs
Power︰150 HP
Blending Cycle Perhour︰7~10
Machine weight︰2850 kgs
MODEL︰YH-HSM1000L
Tank Capacity︰1000L
Blending Capacity︰350~400 kgs
Power︰200 HP
Blending Cycle Perhour︰6~8
Machine weight︰3500 kgs
