LE CHENG MACHINERY CO., LTD.

Product Information - Type 25A Microcomputer-instructed Auto Lathes

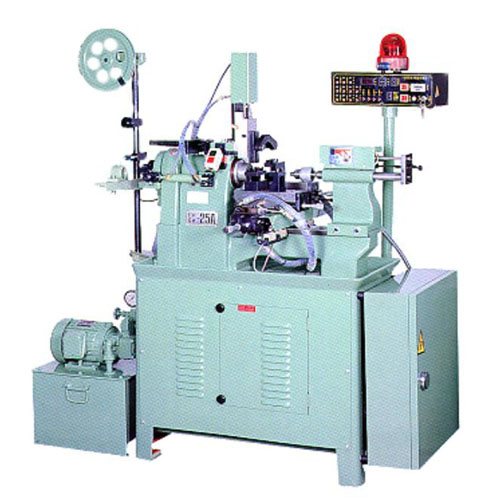

Click for a larger picture
Type 25A Microcomputer-instructed Auto Lathes

Product Description
Product Name:	Type 25A Microcomputer-instructed Auto Lathes
Model:	GW-25A
Country of Origin:	Taiwan

> Detail Specifications / Descriptions

* Bar stock: 25
* Square(a/f): 17
* Hexagonal(a/f): 21
* Rolling Bearings: FAG 30209 x 2 ; 6013ZZ x 1
* Spindle speeds(r.p.m): 1.1133 2.1700 ; 3.2550
* Main slide travel (Front) (Rear): 110
* Front cross slide travel: 90
* Setting angle for taper turning of front cross slide: 360°
* Rear cross slide travel: 80
* Setting laterral adjustment of rear cross slide: 50
* Tail stock spindle Ext. Dia.: 30
* Moss taper: MT.NO2
* Maximum movement of tail stock: 90
* Bed size: L800 x W80 x H190
* Distance between centers: 220
* Three phase motor: 2HP x 1725r.p.m
* Altering pole motor: 2HP x 1725r.p.m
* Machine Dimension: L850 x 520 x 1050
* Net weight(kg): 300
* Dimensions of packing case: 1030 x 540 x 1080
