Drill Grinder

Drill Grinder

Model:
PP-26X
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Taiwan Patent No.:209656
94200802
China Patent No.:03240616.9

Drill size︰Ø12~Ø26mm
Point angle︰100°~135°
Power supply︰Single phase AC 110V AC 220V
Motor︰1/4HP 180W
R.P.M. of motor︰5300 rpm
Diamond grinding wheel︰CBN#200
Weight︰N/W︰23kgs G/W︰24kgs
Packing Dimensions LxWxH︰46x24x22 cm
Standard accessories︰CollectØ13,14,15,16,17,18,19,20,21,22,23,24,25,26
Collect holder 1 Set/Hexagon Wrench 4m/m
Option (Collects)︰Ø12.5,13.5,14.5,15.5,16.5,17.5,18.5,19.5,20.5,21.5,22.5,23.5,24.5,25.5

Operation

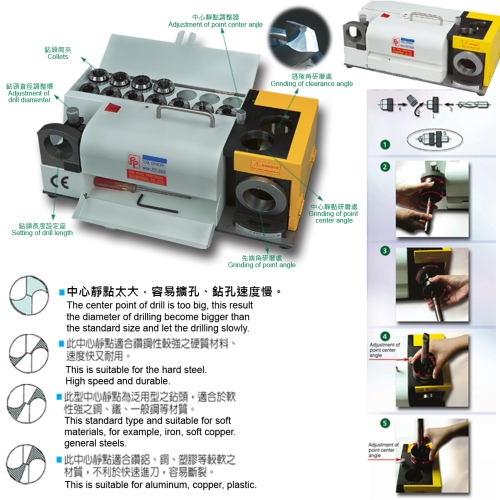

1.The assembly of drill collect holder
■Please follow the step 1, 2,3,4 to assemble the drill collect holder
2.Set the drill collect holder
■Adjust the scale to meet the diameter of drill.
■Insert the drill collect holder and turn right tightly.
■Take out the drill collect holder, make sure the point angle of drill is parallel with the slot of the collect holder
(as the picture) if not parallel, adjust again.
*For various drill, please adjust parallel, then adjust.
The scale to meet the diameter of drill.
