Product Information - 30 TON 2.5 OZ
| > Detail Specifications / Descriptions |
| | Model | Unit | JT-30 | | Injection Unit | Screw Dianter | MM | 25 | 28 | 32 | | Injection Pressure | kg/cm² | 1815 | 1445 | 1110 | Theoretical

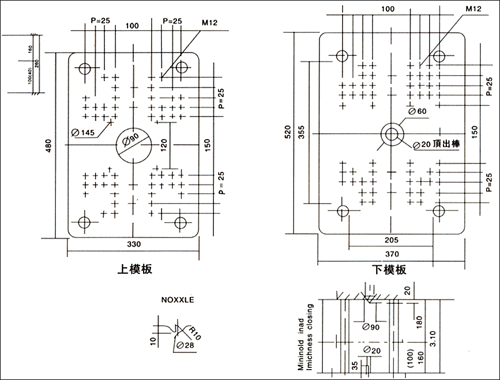

Shot Vlume | cm³ | 54 | 67 | 88 | | Max. Shot Weight (PS) | G / OZ | 50 / 1.8 | 61 / 2.2 | 81 / 2.9 | | Max. Shot Weight (PS) | cm³ / sec | 31 | 39 | 50 | | Injection Rate | MM | 120 | | Screw Speed Max. | RPM | 0-150 | | Nozzle Comtact Force | ZONE | 3 | | Number of Temperater Control | L | 20 | | Clanping Unit | Clamping Foce | T | 30 | | Opening Force | T | 1.4 | | Platen Size | MM | 520 x 370 | | Distance Between Tie Bere | MM | 305 x 205 | | Min. Mold Heigh | MM | 160 / 100 | | Opening Stroke | MM | 180 | | Max. Open Dayinght | MM | 340 / 280 | | Ejector Power | T | 1.3 | | Ejector Stroke | MM | 32m/m | Hydraulic/
Electricity Unit | Max. Hydraulic Pressure | kg / cm² | 140 | | Pump Output | L
/ MIN | 26 | | Oil Presservoir Capacity | L | 100 | | Cooling Eaer Consumotion | L | 400-600 | | Pump Motor Power | HP | 3.7 / 5 | | Berrel Heating Power | KW | 2.7 | | Total Weight | KW | 6.4 | | Others | Machine Weight | T | 1.2 | | Machine Dimensions (LxWxH) | M | 1.55 x 0.93 x 2.45 | | Shipping Weight | T | 1.4 | | Shipping Measurements (LxWxH) | M | 1.7 x 1.15 x 2.3 |
| | |  | | |  |
|
|
30 TON 2.5 OZ
|
