125 TON 5.0 OZ

125 TON 5.0 OZ

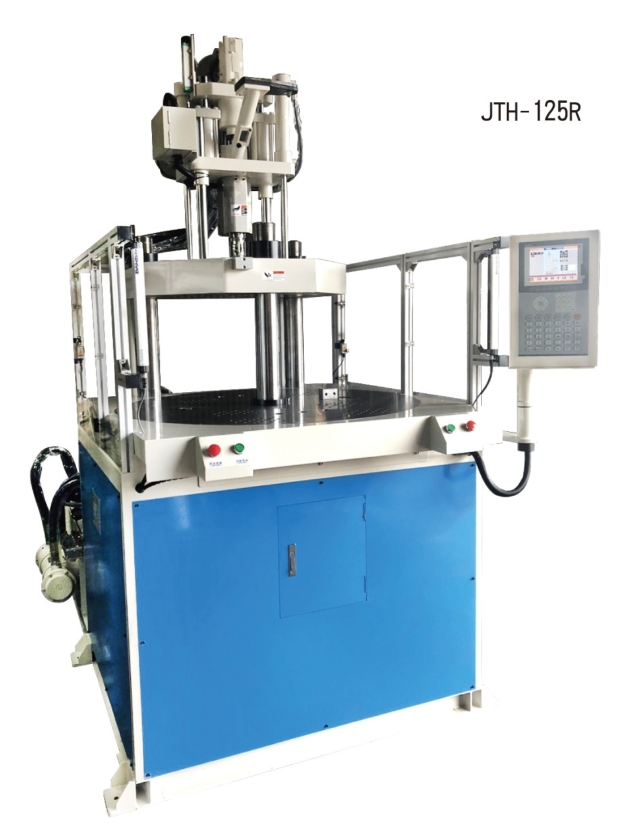

Model:
JTH-125R

Detail Specifications / Descriptions

MODEL
Unit
JT-125


(SD) (R)


Injection
Unit
Screw Diameter
MM
40
45
50


Injection Pressure
Kg/CM²
1993
1575
1276


Theoretical Shot Volume
CM³
226
286
353


Max. Shot Weight(PS)
G / OZ
208/7
263/9
325/11


Injection Rate
CM³ /Sec
110
140
172


Injection Stroke
MM
180


Screw Rotation Speed Max
RPM
0-195


Numbers of
Temperature Control
ZONE



Capacity of Hopper
L



Clamping
Unit
Clamping Force
T
125


Opening Force
T
12


Platen Size
MM
760 x 560


Distance Between Tie Bar
MM
550 x 350


Min. Mold Height
MM
250


Opening Stroke
MM
300


Max. Open Daylight
MM
550


Ejector Power
T
3.5


Ejector Stroke
MM
80

80


Slider
Unit
Slider Size/Turn
Table Diameter
MM
540x540

Ø1210


Numbers of
Mold Station
Sets


2


Max. Mold Dimension
MM


450x400


Rotation Angle of
Turn Table



180°


Hydraulic
Electricity
Unit
Max. Hydraulic Pressure
Kg/CM²
140


Pump Output
L/Min
85


Working Oil Consumption
L
350


Cooling Water Consumption
L
1200-1600


Hydraulic Motor Power
Kw/HP
15/20


Barrel Heater Capacity
KW
7.5


Total Electrical Consumption
KW
22.5


Others
Machine Weight
T
5 x 5.8


Machine Overall Dimensions
MM
2.5 x 1.8 x 3.6


Shipping Gross Weight
T
5.5

6.3


Shipping Measurements
(L x W x H)
MM
2.8 x 2.0 x 2.0
