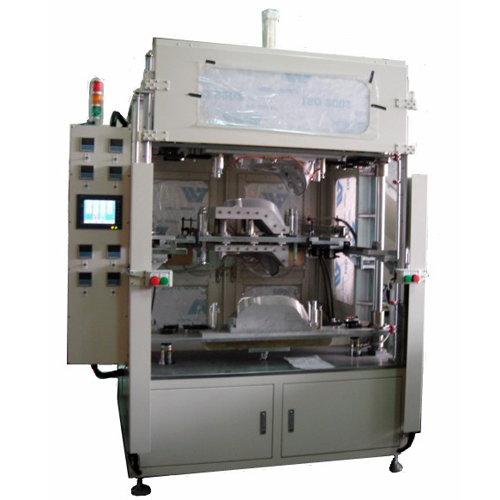

Features:
‧Consistent operating pressure without typical air compression issues
‧High-low pressure activated hydraulic cylinder
‧Hydraulic cylinder can be slowed, pressure-reduced when hot platens contact items to be welded
‧Buffer gap for moving hot platens is adjustable depending on mold weight, minimizing vibration during operation
‧Hot platens move on high-precision linear slide
‧Auto-return of hydraulic cylinder when power OFF prevents deformation of upper and lower platens due to prolonged thermal contact Functions:
‧ Platens are heated to melt surfaces of items to be welded for pressure joining
‧ Pressurized joining seals two surfaces and can achieve air and water-tightness
‧ Suitable for plastic items that are difficult to weld or can’t be ultrasonically welded as
large or asymmetrical items Sample products:automotive taillights, turn signals, third brake lamps, auxiliary radiators and air filters.
| Model No. | SH10050-2H-ON | SH10050-2H-OD | SH10050-2H-OMM | | Attachments | Operational Mode | Thermal Platen | Pneumatic | ● | ● | ● | Hydraulic | ● | ● | ● | Swing clamp cylinder | ● | ● | ● | Upper Platen | Clamp | ● | ● | | Swing clamp cylinder | | | ● | Swing clamp cylinder | ● | ● | ● | Circuit Control | Relay | ● | | | PLC | | ● | ● | Thermometer | 4 sets (Alarms Included) | ● | ● | ● | Upper-Platen Lock | ● | ● | ● | Vacuum Detector | ● | ● | ● | Air Detector | ● | ● | ● | Thermal-Platen Retrieval Buffer | ● | ● | ● | Hydraulic Proportional
Pressure-Control Valve | | | ● | Manual / Automatic Fixture | ● | ● | ● | Protection | Infrared Photoelectric Detector | ● | ● | ● | Air-Activated PC Door | | | ● | Human-Machine Interface | | | ● | Hydraulic Motor | 3HP | 3HP | 3HP | Electric current (Thermal Platen Excluded) | 5A | 7A | 7A | Max. Current Per Display | 30A | 30A | 30A | Max. Operation Area | 1000X500X1050 | 1000X500X1050 | 1000X500X1050 | Max. Mold Spec. | 850x380x250 | 850x380x250 | 850x380x250 | Min. Welding Length | 260mm | 260mm | 260mm | Machine Dimensions | 2700x2050x1600 | 2700x2050x1600 | 2700x2050x1600 | Crate Dimensions | 2420x2200x1750 | 2420x2200x1750 | 2420x2200x1750 | N.W. | 2650kg | 2650kg | 2650kg | G.W. | 2900kg | 2900kg | 2900kg | | Code Descriptions
‧O: Hydraulic ‧N: Standard ‧C: Clamp ‧D: Safety door ‧MM: Human-machine interface
|
