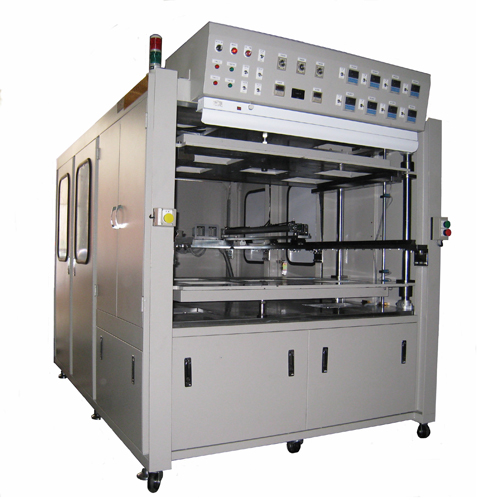

Hydraulic Hot-plate Plastic Welder

Hydraulic Hot-plate Plastic Welder

Model:
SH120110-2H-Oil

Detail Specifications / Descriptions

Features:
‧Consistent operating pressure without typical air compression issues
‧High-low pressure activated hydraulic cylinder
‧Hydraulic cylinder can be slowed, pressure-reduced when hot platens contact items to be welded
‧Buffer gap for moving hot platens is adjustable depending on mold weight, minimizing vibration during operation
‧Hot platens move on high-precision linear slide
‧Auto-return of hydraulic cylinder when power OFF prevents deformation of upper and lower platens due to prolonged thermal contact
Functions:
‧ Platens are heated to melt surfaces of items to be welded for pressure joining
‧ Pressurized joining seals two surfaces and can achieve air and water-tightness
‧ Suitable for plastic items that are difficult to weld or can’t be ultrasonically welded as
large or asymmetrical items
Sample products: Large car trunk lids, pallets etc.




Model No.
SH120110-ON
SH120110-OD
SH120110-OMM


Attachments


Operational Mode
Thermal Platen
Pneumatic





Operation of Upper and Lower Platens
Hydraulic





Clamping Mode
Thermal Platen
C Clamp





Upper Platen
Clamp





Swing Clamp Cylinder





Lower Platen
Clamp





Swing Clamp Cylinder





Circuit Control
Relay





PLC





Thermometer
4 sets(Alarms Included)





8 sets
(Alarms Included)





Upper-Platen Lock





Vacuum Detector





Air Detector





Thermal-Platen Retrieval Buffer





Auto-return of cylinders





Manual / Automatic Fixture





Protection
Infrared Photoelectric Detector





Human-Machine Interface





Hydraulic Motor
7.5 HP
7.5 HP
7.5 HP


Electric current (Thermal Platen Excluded)
15 A
15 A
15 A


Max. Current Per Display
30 A
30 A
30 A


Max. Operation Area
1200 x 1100 x 650
1200 x 1100 x 650
1200 x 1100 x 650


Max. Mold Spec.
1050 x 900 x 180
1050 x 900 x 180
1050 x 900 x 180


Min. Welding Length
210 mm
210 mm
210 mm


Machine Dimensions
2700x2050x1600
2700x2050x1600
2700x2050x1600


Crate Dimensions
1700 x 2710 x 2180
1700 x 2710 x 2180
1700 x 2710 x 2180


N.W.
2800 kg
2800 kg
2800 kg


G.W.








Code Descriptions
‧O: Hydraulic ‧N: Standard ‧C: Clamp ‧D: Safety door ‧MM: Human-machine interface
