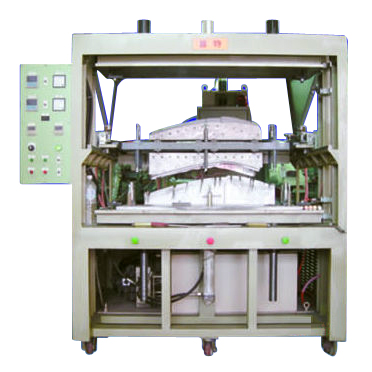

Hydraulic Hot-plate Plastic Welder

Hydraulic Hot-plate Plastic Welder

Model:
SH12050-2H-Oil

Detail Specifications / Descriptions

Features:
‧Consistent operating pressure without typical air compression issues
‧High-low pressure activated hydraulic cylinder
‧Hydraulic cylinder can be slowed, pressure-reduced when hot platens contact items to be welded
‧Buffer gap for moving hot platens is adjustable depending on mold weight, minimizing vibration during operation
‧Hot platens move on high-precision linear slide
‧Auto-return of hydraulic cylinder when power OFF prevents deformation of upper and lower platens due to prolonged thermal contact
Functions:
‧ Platens are heated to melt surfaces of items to be welded for pressure joining
‧ Pressurized joining seals two surfaces and can achieve air and water-tightness
‧ Suitable for plastic items that are difficult to weld or can’t be ultrasonically welded as
large or asymmetrical items
Sample products: automotive taillights, turn signals, third brake lamps, air filters and air-inlet tubes.




Model No.
SH12045-ON
SH12045-OCD
SH12045-OMM


Attachments


Operational Mode
Thermal Platen
Pneumatic





Upper & Lower Platens
Hydraulic





Clamping Mode
Thermal Platen
C Clamp





Swing Clamp Cylinder





Upper Platen
Clamp





Swing Clamp Cylinder





Lower Platen
Clamp





Swing Clamp Cylinder





Circuit Control
Relay





PLC

Optional



Thermometer
4 sets
(Alarms Included)





8 sets
(Alarms Included)





Upper-Platen Lock





Vacuum Detector





Air Detector





Thermal-Platen Retrieval Buffer





Auto-return of cylinders





Manual / Automatic Fixture





Protection
Infrared Photoelectric Detector

Optional



Air-Activated PC Door





Human-Machine Interface





Hydraulic Motor
3 HP
3 HP
3 HP


Electric current (Thermal Platen Excluded)
10 A
10 A
10 A


Max. Current Per Display
30 A
30 A
30 A


Max. Operation Area
1200 x 450 x 950
1200 x 450 x 950
1200 x 450 x 950


Max. Mold Spec.
1050 x 320 x 220
1050 x 320 x 220
1050 x 320 x 220


Min. Welding Length
260 mm
260 mm
260 mm


Machine Dimensions
2420 x 2050 x 1570
2420 x 2050 x 1570
2420 x 2050 x 1570


Crate Dimensions
2520 x 2300 x 1820
2520 x 2300 x 1820
2520 x 2300 x 1820


N.W.
1500 kg
1500 kg
1500 kg


G.W.
1800 kg
1800 kg
1800 kg





Code Descriptions
‧O: Hydraulic ‧N: Standard ‧C: Clamp ‧D: Safety door ‧MM: Human-machine interface
