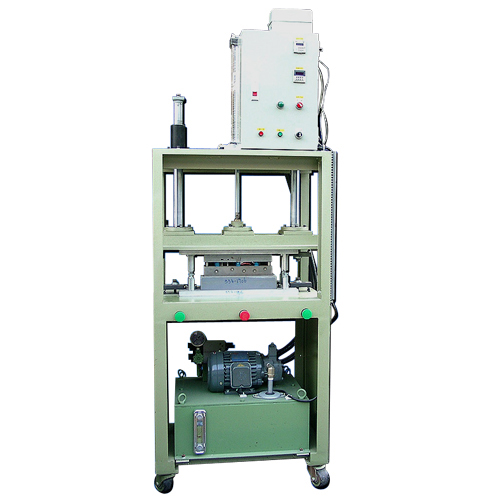

Hydraulic Hot Press

Hydraulic Hot Press

Model:

SH5522-1H-Oil

Detail Specifications / Descriptions

Features:
‧Platens are heated to melt surfaces of items to be welded for pressure riveting, sealing plastic tightly with different materials
‧Hot spot-melting, riveting and congealing are done as time-set procedures
‧Inserts, embeds screws

Sample products: Car lamp circuit boards, LED circuit boards, plastic pump propellers/impellers/blades and car-door pulls.


Model No.

SH5522-1H- ON

Attachments
Operational Mode Operation of Upper and Lower Platens Hydraulic

Clamping Mode Upper Platen

Clamp

Lower Platen

Clamp

Circuit Control

Relay

PLC



Thermometer

1 sets
(Alarms Included)

Protection Infrared Photoelectric Detector

Air-Activated PC Door

Electric current (Thermal Platen Excluded)

2 A

Max. Current Per Display

30 A

Max. Operation Area

550 x 250 x 600

Max. Mold Spec.

400 x 250 x 250

Min. Welding Length

200 mm

Machine Dimensions

850 x 750 x 2080

Crate Dimensions

950 x 900 x 2100

N.W.

300 kg

G.W.

400 kg
Code Descriptions
‧O: Hydraulic ‧N: Standard
