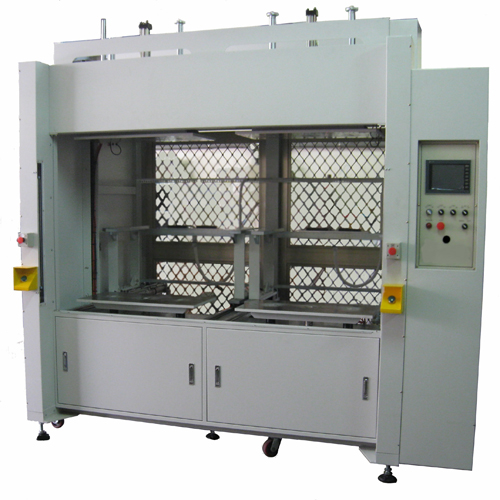

Hydraulic Hot-plate Plastic Welder

Hydraulic Hot-plate Plastic Welder

Model:
SH7555-2in1-Oil

Detail Specifications / Descriptions

Features:
‧Consistent vertical-operating pressure without typical air compression issues
‧High-low pressure activated hydraulic cylinder
‧Hydraulic cylinder can be slowed, pressure-reduced when hot platens contact items to be welded
‧Buffer gap for moving hot platens is adjustable depending on mold weight, minimizing vibration during operation
‧Hot platens move on high-precision linear slide
‧Two-in-one heating unit with options of single or double operation
‧Auto-return of hydraulic cylinder when power OFF prevents deformation of upper and lower platens due to prolonged thermal contact
Functions:
‧ Platens are heated to melt surfaces of items to be welded for pressure joining
‧ Pressurized joining seals two surfaces and can achieve air and water-tightness
‧ Suitable for plastic items that are difficult to weld or can’t be ultrasonically welded as
large or asymmetrical items
Sample products: automotive taillights, turn signals, third brake lamps, auxiliary radiators, air filters and balancers for washers.




Model No.
SH7555-ON
SH7555-OMM


Attachments


Operational Mode
Thermal Platen
Pneumatic




Hydraulic




Clamping Mode
Thermal Platen
C Clamp




Upper Platen
Clamp




Lower Platen
Clamp




Circuit Control
Relay




PLC




8 sets
(Alarms Included)




Vacuum Detector




Air Detector




Thermal-Platen Retrieval Buffer




Auto-return of cylinders




Manual / Automatic Fixture




Protection
Infrared Photoelectric Detector




Air-Activated PC Door




Hydraulic Motor
3 HP x 2
3 HP x 2


Electric current (Thermal Platen Excluded)
10 A
10 A


Max. Current Per Display
30 A
30 A


Max. Operation Area
750 x 450 x 1050-2 sets
750 x 450 x 1050-2 sets


Max. Mold Spec.
620 x 320 x 250-2 sets
620 x 320 x 250-2 sets


Min. Welding Length
260 mm
260 mm


Machine Dimensions
2700 x 1860 x 2790
2700 x 1860 x 2790


Crate Dimensions
2900 x 2000 x 2420
2900 x 2000 x 2420


N.W.
2950 kg
2950 kg


G.W.
3300 kg
3300 kg




Code Descriptions
‧O: Hydraulic ‧N: Standard ‧C: Clamp ‧D: Safety door ‧MM: Human-machine interface
