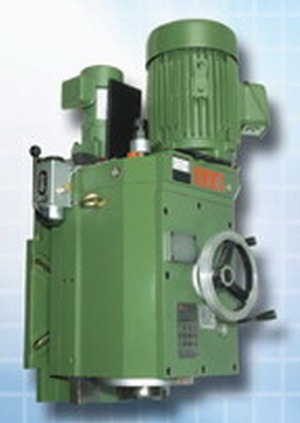

Milling Head Unit

Milling Head Unit

Model:
CL-06
Country of Origin:
Taiwan

Detail Specifications / Descriptions

■The milling head consists of right and left hand side milling head.
■Both of them could be assembled to do vertical milling, horizontal milling and transverse milling.It also could be equipped with our 90 degrees angular head.
■Simple and easy to operate, high rigid of construction. The milling heads suitable to be equipped for many types of specialized machines. Such as heavy duty drilling machine, drilling machine and boring machine.
■The lubricate system are all equipped with automatic pump or electrical injector to provide the forced lubrication.
■The gears are made of SCM415 metal and grind to JIS grade after quenching process.
■The Meehanite cast-iron are used after hardness process for our products to make sure the accuracy of our milling heads.
■The sliding surface of track is precisely grinding after hardness process to make sure the accuracy of our products

OPTION
■Pneumatic Tool Lock
■CL-06, CL-09, with 3/4 hp AC motor for feeding device.
■Ball Screw.
■Air Balancer
■Max. Cutter Dia. Can be up to 315 mm.
