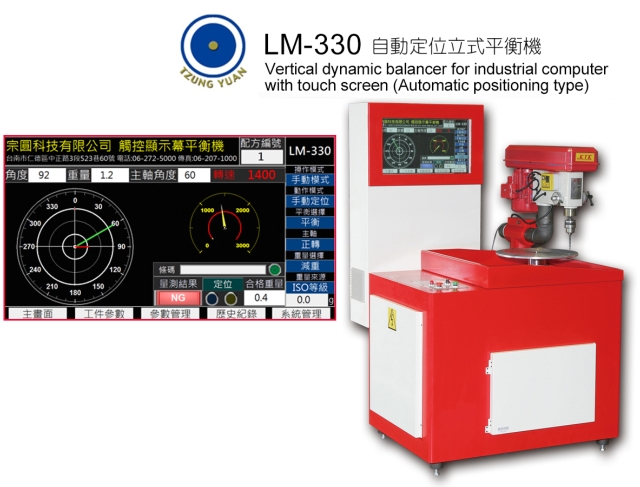

Vertical dynamic balancer for industrial computer with touch screen (Automatic positioning type)
- Model:
- LM-330
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Features :
Specially designed for the balancing machine that detection and correction of rotation wheel, gears, emery wheels, ceiling fan, suction fan, pump blade, clutches, and the rotating round disk type work piece.
Industrial PC and servo motor control, the imbalance angle rotated by the computer is automatically locked to a fixed position.Drill test values can be displayed, drilling times, calibration data display magnification adjustment, adjustable motor start and stop time set. The machine can displayed simultaneously with the drilling machine correction can be completed quickly corrected to figures clearly show that learning how to operate easily.
| Model | LM-310 | LM-330 | LM-350 |
| Weight range of work piece | 0.5~10Kg | 1~30kg | 2~50kg |
| Work piecediameter | 500 mm MAX | ||
| Speed R.P.M. | 1,000 - 1,500 RPM | ||
| Sensitivity | 0.1g | ||
| Angle position | Manual,Auto | ||
| Drive Servo Motor | Brand according to customer selection 2HP | Brand according to customer selection 2HP | Brand according to customer selection 5HP |
| Display | 22" Touch screen | ||
| Laser Scanner | Scanner(Optional) | ||
| Dimension (L*W*H) | 910 * 910 * 1,580 mm | 1,125 * 910 * 1,580 mm | |
| Weight | 600kg | 700kg | |
