Product Information - Quick Release Hose Clamp

Click for a larger picture

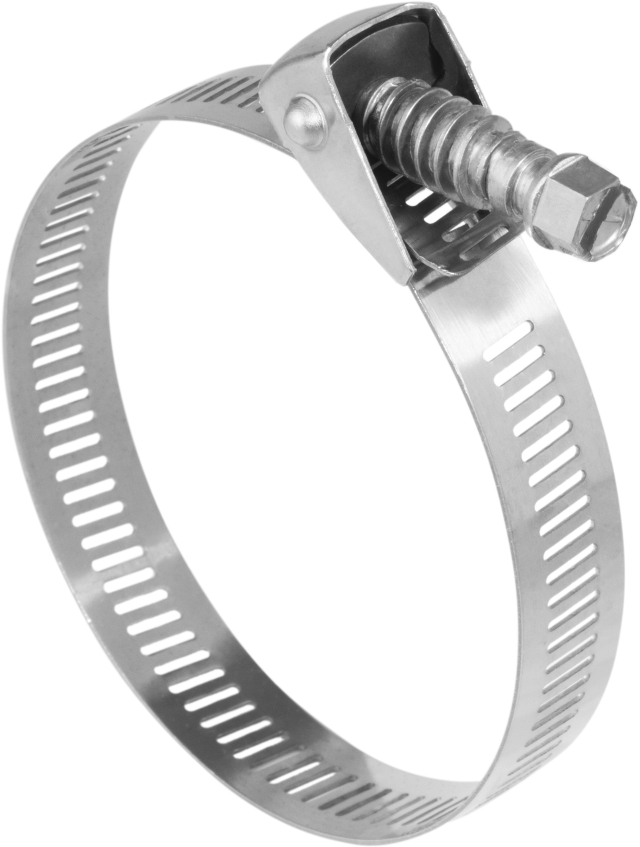

Quick Release Hose Clamp

Product Description
Product Name:	Quick Release Hose Clamp
Model:	n/a

> Detail Specifications / Descriptions

	Diameter Range
No.	Inch	mm
No.	Min. to Max.	Min. to Max.
12	1/2 - 1 1/4	13-32
20	3/4 - 1 3/4	19-44
24	1-2	26-50
28	1 - 2 1/4	26-57
36	7/8 - 2 3/4	23-70
48	1 5/8 - 3 1/2	42-90
56	1-4	26-100
72	2-5	51-130
88	2-6	51-152
104	2-7	51-176
116	2 - 7 3/4	51-197
128	2 5/16 - 8 1/2	60-215
152	2 5/16 - 10	60-254
188	2 5/16 - 12	60-311

Materials:
QN:	Housing and Band -- AISI304.
	Screw, and Bridge -- Zinc plated, yellow dichromatic, carbon steel.
Q3:	Band & Housing -- AISI304
	Bridge & Screw -- AISI410 with heating treatment

Material Thickness:

Housing: 0.0315" (0.8mm)

Bridge: 0.079" (2.0mm)

Band: 0.024" (0.6mm)

The character of the
Quick Release Clamp is that it makes both installation and removal faster
and more convenient than traditional hose clamps. Furthermore, the adjustable-range
is longer. The one-size quick-release clamp can be used for multi-size hoses.
