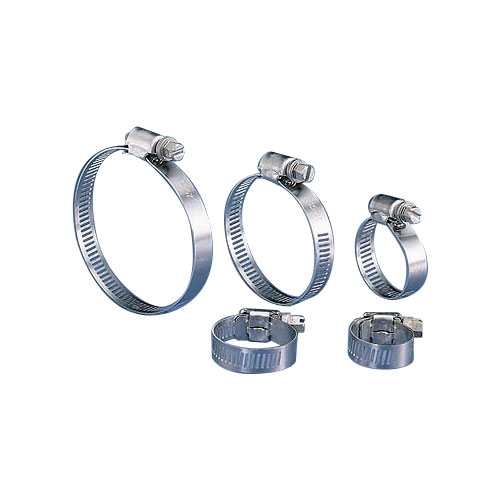

Worm
Drive Hose Clamps | | | Diameter
Range | | Packing/CTN | Band
Width | mm | Inches | Band
Thickness | pcs | kgs | | | 8-12 | 5/16"-1/2" | 0.6 | 2000 | 14.5 | | 8-16 | 5/16"-5/8" | 0.6 | 2000 | 15.7 | | 12-20 | 1/2"-3/4" | 0.6 | 2000 | 16.7 | | 12-22 | 1/2"-7/8" | 0.6 | 2000 | 17.8 | | 16-25 | 5/8"-1" | 0.6 | 2000 | 18.0 | | 16-27 | 5/8"-1
1/16" | 0.6 | 2000 | 19.2 | | 20-32 | 3/4"-1
1/4" | 0.6 | 2000 | 18.1 | | 25-40 | 1"-1
5/8" | 0.6 | 2000 | 19.1 | | 30-45 | 1
3/16"-1 3/4" | 0.6 | 1,000 | 20.1 | | 35-50 | 1
1/4"-2" | 0.6 | 1,000 | 21.8 | | 9mm | 40-60 | 1
5/8"-2 3/8" | 0.6 | 1,000 | 24.1 | | | 50-70 | 2"-2
3/4" | 0.6 | 1,000 | 27.5 | | 60-80 | 2
3/8"-3 1/8" | 0.6 | 500 | 16.5 | | 70-90 | 2
3/4"-3 1/2" | 0.6 | 500 | 17.5 | | 80-100 | 3
1/8"-4" | 0.6 | 500 | 18.1 | | 90-110 | 3
1/2"-4 3/8" | 0.6 | 500 | 20.1 | | 100-120 | 4"-4
3/4" | 0.6 | 500 | 20.5 | | 110-130 | 4
3/8"-5 1/8" | 0.6 | 250 | 11.2 | | 120-140 | 4
3/4"-5 1/2" | 0.6 | 250 | 12.0 | | 130-150 | 5
1/8"-5 7/8" | 0.6 | 250 | 12.9 | | 140-160 | 5
1/2"-6 1/4" | 0.6 | 250 | 12.5 |
Materials:
GG: Completely Zinc-coated Steel
GM: Band--AISI430 Housing--AISI430 With Palted Screw
G4: Band--AISI430 Housing--AISI430 Screw--AISI410
GN: Band--AISI304 Housing--AISI430 Palted Screw
G3: Band--AISI304 Housing--AISI304 Screw--AISI302
G3 is Used for Marine, Underground, and other
High Corrosive Applications
|
