‧A two-step setting/output timer with four-digit display.
‧Features : | | Easy to Operate | Easy to operate: each digit has a reset switch, which is the same as a DIP Switch. No complicated input design. | | Multiple Operation Modes | Output operation, auto delay reset, instant reset, manual/auto reset. | | Adjustable Time Output | 0.1-999.9 sec., can be input from panel. | | Multiple Time Ranges | 0.1 sec., 1 sec., 1min., and 1hr. Users can reset time ranges by themselves. | | Dual Time Operation Ranges | With base-10 (1-9999 sec.) or base-60 (1-99M, 59S) time ranges available. | | EEPROM Memory | Uses an IC to memorize counting values and setting values.
Memory will 10 years without battery deterioration. | | Auto Delete | Uses noMEM terminals to select CVMPF (Counting Values Memorization for Power Failure) or AZAPS (Automatic Zero Adjustment for Power Supply) | | Timing Pause | Uses of GATE terminal can stop time count temporarily. | | Decimal Point Display | The decimal point will flash and adjust its location according to different time ranges. | | Complete Output Terminals | Provide two connections: N. O. and N. C.; and output terminals without connection. | | LED Instruction | Setting Value: P1, P2 Operation Instruction: OUT1, OUT2 (individual LED instruction). | | Large Seven-section Tube Model Display | Use different colors to separate setting values and counting values. Using a zero countdown, the digits are easy to identify. | | Dustproof Structure | One-piece-formed model, membrane panel, without leakage and free from oil and dust. | | Count Up/Down Available | Users can use DIP Switch to adjust timing method for counting up/down. |
| ‧Specifications: | | Model | NT-422 | | Sections for Setting | A two-step setting | | Time setting rage | Uses DIP Switch to select time setting ranges: 0.1-999.9S, 1-9999S, 1-9999M, 1-9999H, 0M, 1S-99M, 59S, 0H, 1M-99H, 59S, 0D, 1H-99D, 23H | | Input | Non-connection input:ENCODER, application: proximity switches; L: 0-3V, H: 6-30V
Connection input: relay connection, micro-adjustment switches | | Output | Connection output: from each of the connections (a, b) (AC250V, 3A)
Non-Connection output:NPN capacitor output (DC30V, 0.5A) | | Output Time | P1:Before switching to P2 movement and following P2 mode, P1 movement is in operation. | | P2:Operation or 0.1-999.9 sec. (setting by panel) | | Output Mode | P1 : Switches from N movement to P2 movement, and follows P2 mode. | | P2 : Operation N, R, C (setting by DIP SW) | | Reset | External reset, panel button "RESET," an automatic reset by timing operation. | | Counting Pause | When counting is in process, users can't revise settings,
and the terminal for receiving input digits will stop. | | Button Instructions | Use LED to indicate setting values and delay values. | | Output instructions | Use LED to indicate panel OUT. | | Saving Memory: | EEPROM can last 10 years. Setting values, counting values,
and delay values can be memorized (max. 12V, 50mA) | | Power | AC 110V/220V | | Operating Temperature | -10°C~+50°C | | Operating Humidity | 45~85%RH |

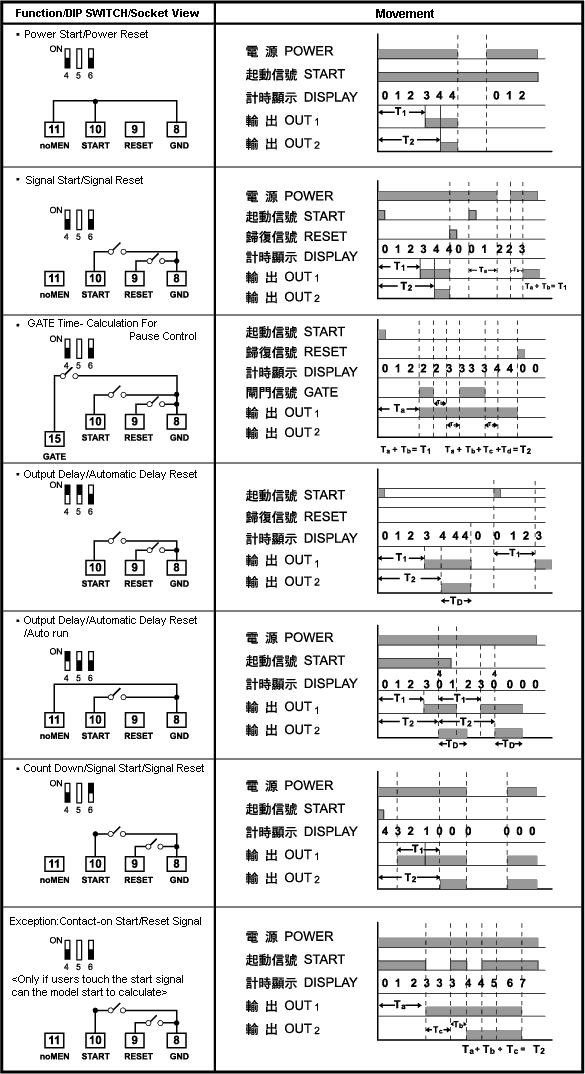

| ‧DIP Switch Operation Mode Setting : |  |
| ‧Application: | | Example: | | ‧1st time setting (T1): 3 sec. | | ‧2nd time setting (T2): 4 sec. | | ‧Delay circle (TP): 2 sec. | | |
| ‧Terminal Connection View : |  | | Terminal | Two-step Setting Model | | 1 | AC OV | | 2 | AC 110V | | 3 | AC 220V | | 4 | ¡Ð | | 5 | N.C. | } P2 | | 6 | COM | | 7 | N.O. | | 8 | GND | | 9 | RESET Reset input | | 10 | START Start input | | 11 | noMEM Input without memorization | | 12 | OUT Output without connection | | 13 | ¡Ð | | 14 | DC +12V Power output | | 15 | GATE Paused for time-measuring input | | 16 | N.C.1 | } P1 | | 17 | COM1 | | 18 | N.O.1 |
| ‧Dimensions : |  |
|
|
|
