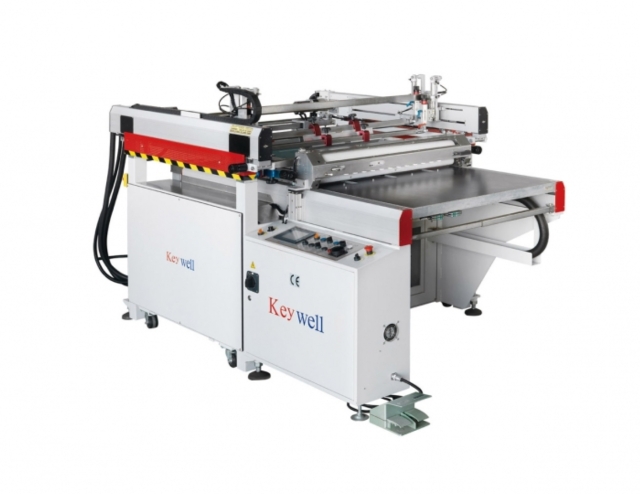

High Precision Medium Four-Post Table Sliding Screen Printing Machine

Suitable for printing Optoelectronics products such as touch panels, EL films, Mobil dashboard, FPC, Membrane switch, ITO glasses, Biotech test film… etc.

Product Feature
Keywell High Precision Optoelectronics Screen Printing Machine is an elegant and excellent machine with strengthened structure. Equips high precision print functions which is very easy to operate.

Colorful HMI touch panel:
The digital touch panel system enables to save multi printing parameters, with varies functions to fulfill the requirement of digitization and standardization and reduce the set-up time to increase the capacity.

Printing head:
The printing head is driven by servo motor + precise linear rail and maintaining free timing belt. Equip functions of printing/coating speed adjustment, continuous repeated printing, squeegee/coater angle adjustment, constant printing pressure setting and non-ink dropping.

Foolproof optical sensor for substrate registration:
Equip registration pins with foolproof optical sensors to prevent the wrong printing which caused by the operator for reducing the rejection rate and increase the yield rate.

Safety protection:
Equip safety net, safety bar and emergency stop switch.

Optional items:
1. Non-dropping device
2. Dust clean roller
3. Static eliminator
4. Foolproof sensor for substrate registration
5. Auto take-off system
6. UV conveyor dryer / Hot air conveyor dryer
7. Automatic stacker
