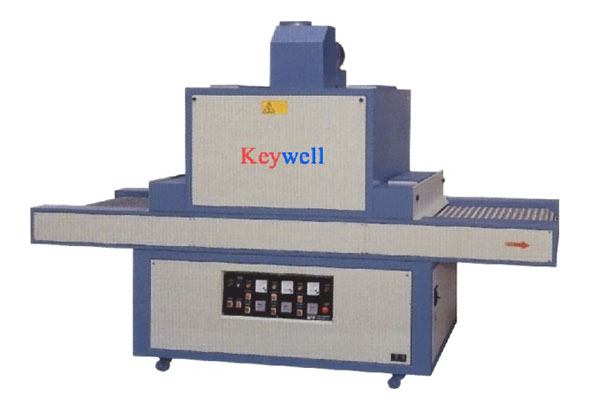

UV Conveyor Dryer (Stainless steel conveyor)

UV Conveyor Dryer (Stainless steel conveyor)

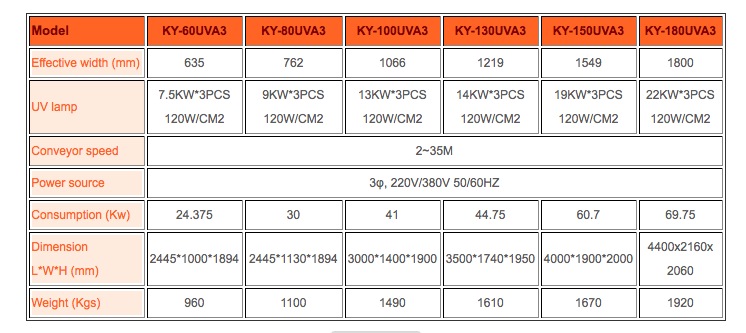

Model:
KY-60UVA3, KY-80UVA3, KY-100UVA3, KY-130UVA3

Detail Specifications / Descriptions

Suitable for curing PCB, acrylic, glass, metal sheet, wooden sheet, plastic key…etc after screen printing.

Product Feature
1. Machine body constructed by SS#41 high-grade steel and coated by anti-rusted painting.
2. Transmission system: The conveyor belt is driven by reducer motor with inverter, the speed is adjustable.
3. The speed of stainless steel conveyor is adjustable from 2-35M/min. The exhaust is on the top of the oven.
4. Lampshade: With unique aluminum extruded radiator, German reflector to achieve the maximum UV output.
5. Cooling system: Forcing cooling style, high efficiency cooling fan and special cooling structure to reduce the oven temperature.
6. Control panel: Power switch, UV lamp switch, tri-power switches (50%, 75%, 100%), current meter of each lamp, accumulating timer of each lamp, overheating indicator, emergency switch.
7. Safety device – overload protector, over temperature protector, exhaust overload protector, and fuse for control circuit.

UV Conveyor Dryer (Stainless steel conveyor)
Company: KEYWELL INDUSTRIAL CO., LTD.
