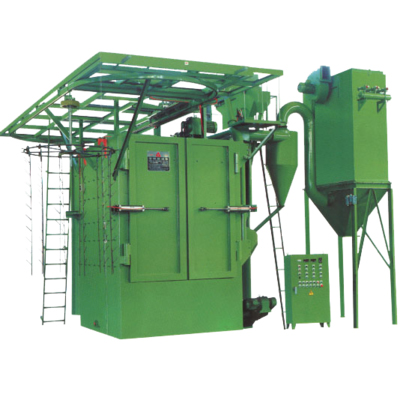

CIRCULATING HANG TYPE SHOT BLASTING M/C

CIRCULATING HANG TYPE SHOT BLASTING M/C

Model:
CH-104
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Special designed of circulating hang installation at top of m/c and the work piece be hanged m/c and swinged slowly get into the blasting chamber, for then, the work piece surface will be shoted steel ball by shot wheelabrator in hi-speed and continuously, but the hang work piece turned in low speed, Since, the work piece surface will be shoted evenly. after that, the casting sand, scaling & burring etc. which adhesived on the work piece surface will be cleaned soon, the processed work piece will be shined& burnished and convenient for next step processing.

Simple of operating, the operator whom just hang up un-process work piece at one end and processed work piece will be taken away at another end and can be operated progressively, great product capacity.

This m/c is suitable for medium & large size castings, complicated profile or hollow etc., work piece suited for hanging die castings or same profile weldments.

Ea. hanging load:500kg
Max. work piece size/div>:1800x1200mm
No. of wheelabrator:2-3
Shoting power:10HPx2/3
Dust collecting power:5HP
Elevating power:2HP
Helical collecting power:2HP
Track conveying power:1HP
Used floor space[LXW]:10x8m
N.W.:7,000kg
We reserve the right to modify the designs & specifications. so that,those are subjected to change, without prior notice.
Machine made available on request.
