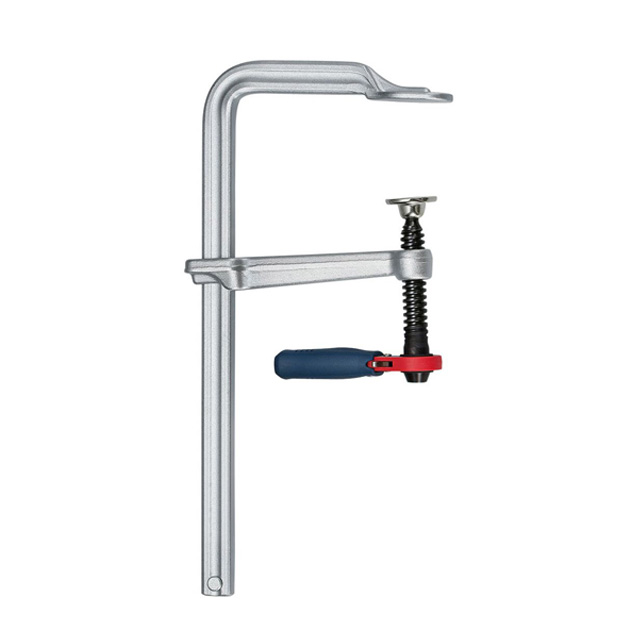

Innovative Ratchet Lever Clamp

Innovative Ratchet Lever Clamp

Model:

HT2300-043

Country of Origin:

Taiwan

Material:

Head : Hot forged head ,Handle : TPR ,Pad : PP

Color:

Color of product based on formal quotation sheet

Minimum Order:

quantity negotiable- please enquire with us

Delivery Lead Time:

To be advised

Delivery FOB Port:

To be advised

Payment Condition:

T/T,Western Union

Detail Specifications / Descriptions
Feature

Upgraded 2-way ratchet handle design allows for working in tight spaces
Innovative patented ratchet design saves half the operating time, perfect tool for craftsmen
Increasing 20% clamping force when compared to T-handle clamps
Strong quick-release clamp suitable for general and heavy-duty jobs

Description

Clamping pressure up from 670kg to 1200kg for all applications

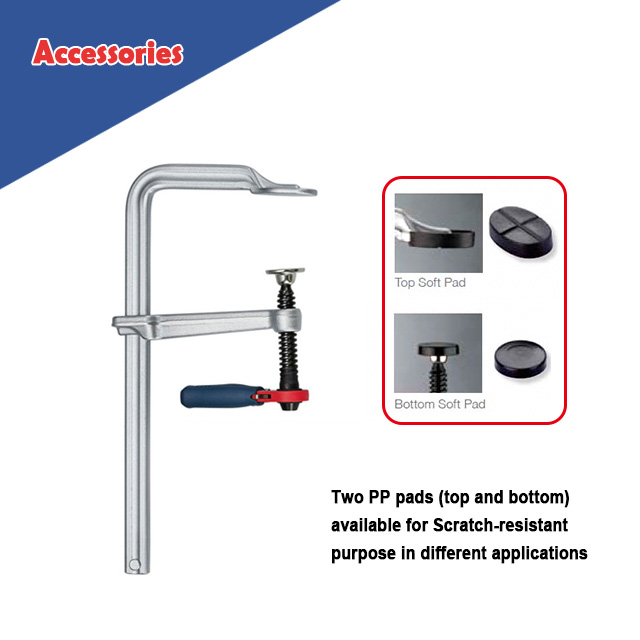

Two PP pads (top and bottom) available for Scratch-resistant purpose in different applications
Made in Taiwan for longer durability and lifetime

Specification

Item NO. Span x Depth Rail Weight Pressure Pack
  mm mm kg kg pcs
HT2300-043A 300 x 140 25.0 x 12.0 1.98 670  10
HT2300-043B 300 X 120 1.89 750
HT2300-043C 400 X 120 2.1
HT2300-043D 500 X 120 2.31
HT2300-043E 600 X 120 2.52
HT2300-043F 800 X 120 27.0 X 13.0 3.41 1000
HT2300-043G 1000 X 120 3.89
HT2300-043H 1250 X 120 4.52 4
HT2300-043I 1500 X 120 5.04
HT2300-043J 250 X 120 30.0 x 15.0 2.63 1200 10
HT2300-043K 300 X 120 2.84
HT2300-043L 400 X 120 3.19
HT2300-043M 500 X 120 3.41
HT2300-043N 600 X 120 3.88
HT2300-043O 800 X 120 4.38
HT2300-043P 1000 X 120 4.99
HT2300-043Q 1250 X 120 5.78 4
HT2300-043R 1500 X 120 6.58
Material of Head : Hot forged head
Material of Bar : Cold drawn profiled steel with temper and harden process for high pressure strength
Surface Treatment : Nickel Chrome Plating
Material of Handle : TPR
Material of Pad : PP
The Span of Clamping Force : 150mm
