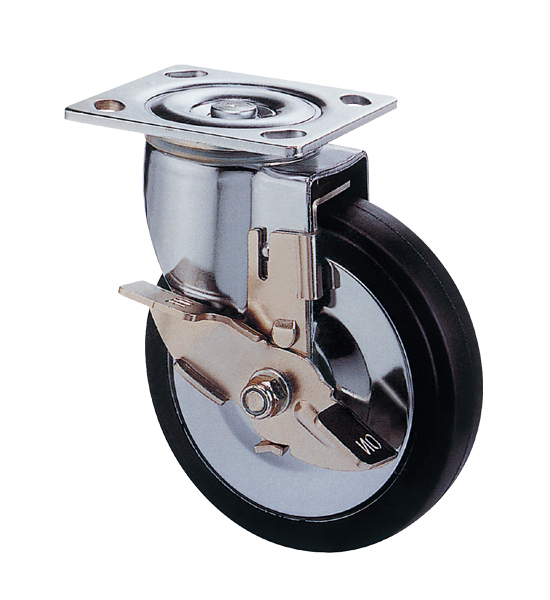

6 inch Chrome Plated Rubber Caster

6 inch Chrome Plated Rubber Caster

Model:
HO615BS-HA
Country of Origin:
Taiwan
Material:
Elastic Rubber

Detail Specifications / Descriptions

Type: Side Wheel Brake Caster
Wheel Diameter x Width: 6x1½ inch (150x38 mm)
Overall Height: 190 mm
Load Capacity: 350 kg
Bolt Hole Center: 70x85 mm
Plate Size: 105x115 mm
Bolt Hole: Φ12x20
Wheel Bearing: #6202 Double Ball Bearings
Fork Structure: Pressed Steel;Chrome Plated
Eccentricity: 42 mm
Wheel Core: Aluminum Core
Weight: 2.55 kg
Others: Steel Wheel Cover

1. Wheel: Elastic Rubber Wheel, with the features of high elasticity, good load capacity and wear resistances.
2. Wheel Core: Aluminum Core, not easy to be rusted and also increases the durability and load capacity of caster.
3. Bearing: #6202 double ball bearings to enhance the rotation.
4. Fork: Side Wheel Brake with top plate. Pressed steel and integrally formed. Chrome plated.
5. Others: Steel wheel covers to prevent the dust, water and other materials.

6 inch Chrome Plated Rubber Caster
