120 KVA x 2 sets of transformers.
Diameter of wire: ø2~ø10mm.
Production capacity: 3.5 second/each wire.
Size of mesh: W2400 mmx L3000mm
W1800mm x L3000mm
W1200mm x L3000mm
12 sets of cylinders can be operated & disengaged separately.
Can alos be adjusted according to the various requirement of production.

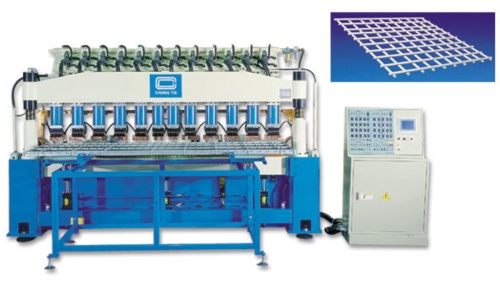

Two sets of transformers on both sides of machine.
12 sets cylinders on top of machine. To separate the cylinders from the
center of electrondes.
Each time, two electrodes are descended for welding. Then electrodes descend
automatically from the center to both ends, totally six times descending. The current is adjustable.
While cross wires loaded into the mold, manually push the mold to welding position,
then to operate the welding by foot paddle.
It is the essential that the mesh product must be flat without distortion.
This machine is designed for this purpose.
