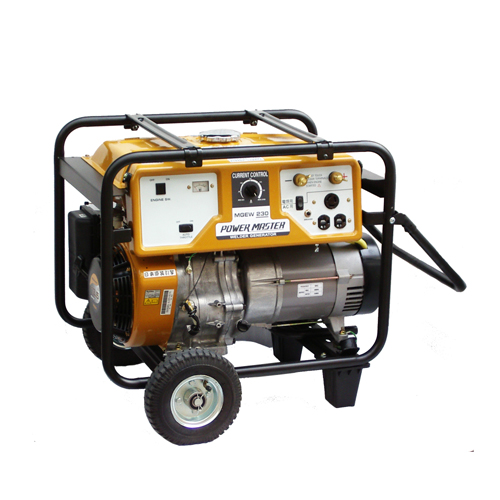

Welding Generator

Welding Generator

Model:
MGEW 230R
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Model Number: MGEW230
Engine: EH41 (13.5HP)
Noise: 75DB (50HZ) ; 77DB (60HZ)
Engine: EH41 (13.5HP)
Noise: 75DB (50HZ); 77DB (60HZ)
Voltage: Single Voltage
Frequency: 50HZ/60 HZ
Welding Current: 50~ 210A
Welder Output : DC28V 180A 3600RPM
AC Output: Max. 4000VA; Rated 3300VA
Power Factor: 1.0 50% Duty Cycle
Welding Rod Dia.: 2.5~ 5.0mm (5.0mm in dot)
Starting System: Recoil starter
Voltage Regulator System: Condenser
Option: Electric starter; Auto Voltage Regulator (AVR)
Specialty : Automatic idle Control, Oil Sensor & Wheel
Gas Tank : Gasoline 17L (5.2HR)
Dimensions (LxWxH) : 677x471x635mm
Net Weight: 89KG (for recoil starter);
96KG (for the electric starter)

Welding Generator
