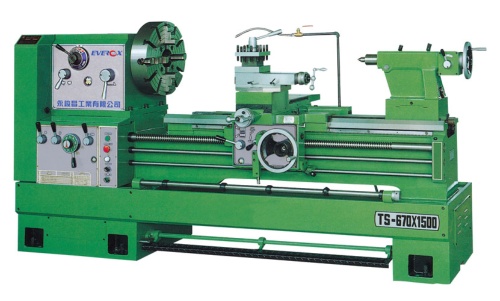

Click for a larger picture
HEAVY DUTY PRECISION & POWERFUL LATHE
|
| Product Description |
| Product Name: |
HEAVY DUTY PRECISION & POWERFUL LATHE |
| Model: |
TS670×1500 |
|
| > Detail Specifications / Descriptions |
Swing over bed: 670 mm(26-3/8")
◎Swing over cross slide: 445mm (17-1/8")
◎Swing over gap: 920mm (36-1/4")
◎Length of gap from spindle nose：390mm
◎Distance between centers：1000mm（40”）1500mm（60”）2000mm（80”）
2500mm（98”）3000mm（120”）
◎Width of bed：410mm（16-1/8”）
◎Spindle bore / Spindle nose：80mm（3-1/8”）/ ASA A2-8
◎Taper of spindle：M.T. #7
◎Range of spindle speeds：25-660rpm（8 steps）
◎Lead screw dia. & Threads per inch：45mm×2 T.P.I or P12mm（opt.）
◎Range of longitudinal/cross feeds：0.1-1.4mm/0.05-0.7mm
◎Tailstock spindle travel：195m/m
◎Tailstock spindle dia.：65m/m
◎Tailstock spindle taper：MT#4 or MT#5（opt.）
◎Coolant pump motor：1/8HP（0.1KW）
◎Main spindle motor：5HP（3.7KW）/4P
|
|
HEAVY DUTY PRECISION & POWERFUL LATHE
|
