Product Information - HEAVY DUTY BED TYPE MILLING MACHINE
|

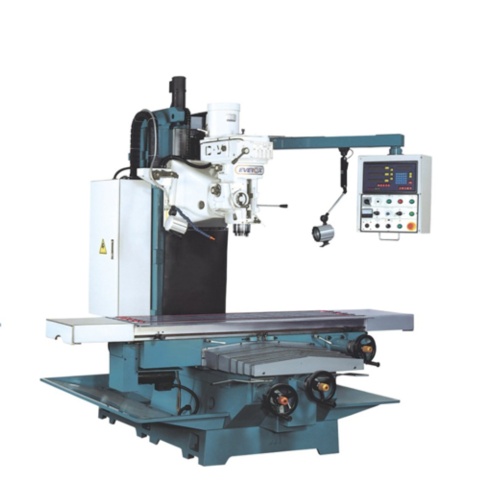

Click for a larger picture
HEAVY DUTY BED TYPE MILLING MACHINE
|
| Product Description |
| Product Name: |
HEAVY DUTY BED TYPE MILLING MACHINE |
| Model: |
EM-1460B |
|
| > Detail Specifications / Descriptions |
TRAVEL:◎Longitudinal travel-x：1400mm
◎Cross travel-Y：600mm
◎Vertical travel-z：700/800/900/1000mm
TABLE:◎Table size：1702×410mm
◎T Solts：4×18×70mm
◎Table load：1200kgs
◎Rapid feed：X,Y,Z axis 10－3000/4800mm/min
SPINDLE:◎Spindle taper：NT40
◎Quill diameter：Ø 110mm
◎Quill travel : 140 mm
◎Spindle speed：65-3580 （16 steps）85-3600 Variable (opt.)rpm/min
◎Distance from spindle end to eadle：800/900/1000/1100mm
◎Distance from spindle center to column：650mm
MOTOR:◎Main motor：5HP/4P
◎X,Y,Z axis servo motors：：4.5Nm
◎Coolant pump：1/8HP
|
|
HEAVY DUTY BED TYPE MILLING MACHINE
|
