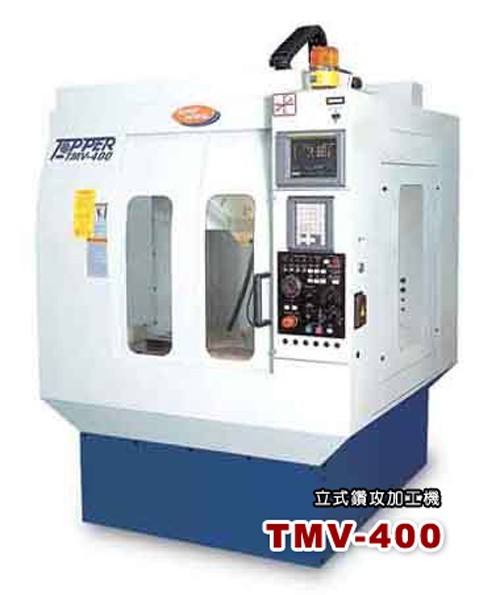

Click for a larger picture
CNC TAPPING & MILLING CENTER
|
| Product Description |
| Product Name: |
CNC TAPPING & MILLING CENTER |
| Model: |
TMV-400 |
|
| > Detail Specifications / Descriptions |
ITEM SPECIFICATION UNIT TMV-400
TABLE Working Area(LxW) mm 500 × 320
Max. Table Load kgs 200
Table Height mm 850
T-Slots (Size x No. ) mm 18 ×3
SPINDLE Spindle Nose 7/24 No. 30
Spindle Speed rpm 240 - 8000
360 - 12000
TRAVEL X/Y/Z Axis mm 400×250×250
Spindle Nose to Table mm 200 - 450
FEED X/Y/Z Rapid Traverse M/min 36/36/30
Cutting Feed mm/min 1 - 10000
ATC Tool Capacity pcs 10/14
Max. Tool Dia mm 80
Max. Tool Length mm 200
Max. Tool Weight kgs 3
MOTOR Spindle Motor(50%ED) kw 3. 7
X/Y/Z Servo Motor kw 1. 4/1. 4/1. 6
Coolant Motor kw 0. 185
DIMEN-SION Length mm 1400
Width mm 2260
Height mm 2280
Weight kgs 2000
|
|
CNC TAPPING & MILLING CENTER
|
