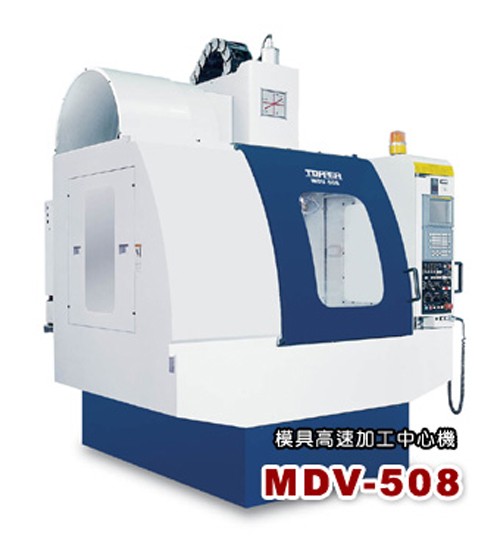

Click for a larger picture
VERTICAL MACHINING CENTER(HIGH SPEED MACHINE)
|
| Product Description |
| Product Name: |
VERTICAL MACHINING CENTER(HIGH SPEED MACHINE) |
| Model: |
MDV-508 |
|
| > Detail Specifications / Descriptions |
ITEM SPECIFICATION UNIT MDV-508
TABLE Table Area(LxW) mm 950×500
Max. Load Capacity kg 500
Height From Floor mm 900
T-Type Groove mm 18×5
SPINDLE Spindle Nose 7/24Taper No. 40(HSK-63A)
Spindle Speed rpm 12000(OPT20000)
STROKE X/Y/Z Stroke mm 850x500x530
Spindle Nose to Table mm 100-630
FEED X/Y/Z Rapid Traverse Rate m/min 24/24/24(OPT30/30/30)
Cutting Feed Rate mm/min 10000
ATC Tool Shank BT40/HSK-63A
Tool Pull-Stud Mas-P40T-1(45°)(BT-Type)
Tool Capacity 24
Max. Tool Diameter mm ψ80(No Adjacent ψ125)
Max. Tool Length mm 250
Max. Tool Weight kg 7
MOTOR Spindle Motor(50%ED) kw 18. 5/22(30/45)
X/Y/Z Servo Motor kw 3/3/4(OPT4. 5/4. 5/4. 5)
Coolant Motor kw 0. 37
DIMENSION Floor Space(LxW) mm 2000x2870
Machine Height mm 2810
Net Weight kgs 5500
|
|
VERTICAL MACHINING CENTER(HIGH SPEED MACHINE)
|
