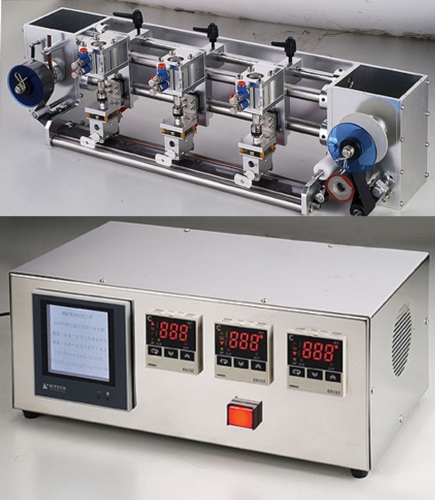

Multiple Heads Ribbon Coder  / Food Packing Machine/ Date Printer/Ribbon Printer

Multiple Heads Ribbon Coder / Food Packing Machine/ Date Printer/Ribbon Printer

Model:

ST-353

Country of Origin:

Taiwan

Detail Specifications / Descriptions
【Sizes】

1. Power Size: AC220V (50Hz/60Hz) // AC110V (50Hz/60Hz)

2.Consumables:Carbon ribbon

3.Coding area:34mm x 20mm (Single Matrix)

4. Feeding speed: 300 pieces /min. (For 3 Matrixes)

5.Coding speed:100 times /min (Single Matrix)

6.Machine size:L 200mm x W 700mm x H180mm (For Standard 3 Matrixes)

7. Control case size: L190mm x W340mm x H150mm

8. Pre-setted matrix numbers are 3 Matrixes (increasing matrixes are acceptable)

【Characteristic】

1. SUS 304 bright stainless steel control case (not general iron or aluminum case)

2. Three inches H.M.I, Touch Monitor Interface Control System (leading design in the word)

3. Independent LED digital temperature control system

4. PLC programs logic controller

5. Dual purpose, Touch Monitor (H.M.I) or hand controls the pulling length of the carbon ribbon. (leading design in the word)

6. Dual purpose, Touch Monitor (H.M.I) or hand controls printing.

7. Touch Monitor (H.M.I) could be setted single matrix or muti-matrixes printing.

(leading design in the word)

8. Touch Monitor (H.M.I) could be precisely setted the pulling speed of the carbon ribbon.

(leading design in the word)

9. Each matrix distance could be adjusted by manual.

10. Printing 1~ 5 lines are adjustable.

11. Pre-setted matrix numbers are 3 Matrixes (increasing matrixes are acceptable)

12. Multi-matrixes could be adjusted to single matrix or a few matrixes printing by

Touch Monitor (H.M.I). (leading design in the word)

13. Carbon ribbon broken alarm.

14. Can design and manufacture according customers’ special requirements and needs.

15. Precision, Durable, High Quality, Great Services Made In Taiwan
