Industrial Cooling Fan - Industrial High Efficient Air Cleaning & Cooling Device

Industrial Cooling Fan - Industrial High Efficient Air Cleaning & Cooling Device

Model:
AWY-24

Detail Specifications / Descriptions

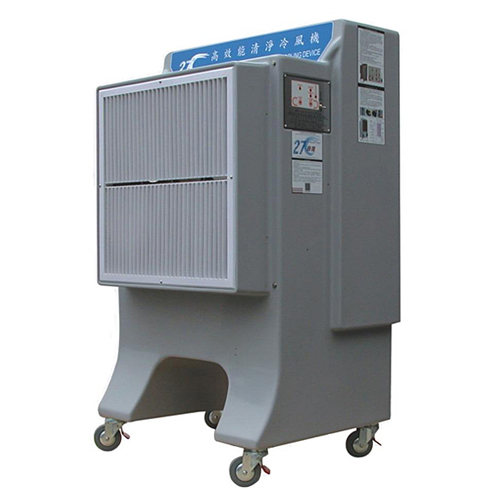

Industrial high Efficient Air Cleaning & Cooling Device (mobile water-type)
* Application Area: It can be suitably used in all kinds of the open-air or half open-air scorching hot factory houses for workers at site, reducing temperature.
* Invention Patent: Awarded national invention patent No.:073437, new model patent No.:104647 and other patents in the world.
* Cooling Switch Board: American technology, patent special paper products.
* Touch Control Switch: Innovative high sensitivity touch control, LED ultra-high brightness indicator light with easy operation, resistant to moisture and oil stains.
* Case Material: F.R.P. reinforced plastic, integrate, strong and assistant to acid and alkali.
* Voltage used: Single phase AC220V-50HZ / 60HZ
* Electric Current: 3.1 A (6P fan motor 2.1 A, submerge pump1.0A)
* Motor Power: 682W (6P fan motor 1/2HP, submerge pump 1/4HP = 3/4HP)
* Maximum Revolution: 1,200 (R.P.M.)
* Blade Size: 24"
* Max. Air Volume: 12,000M 3/hr
* Max. Air Speed: 15M/sec
* Product Net Weight: 60kg (Gross weight after wood case packaged > 80kg)
* Appearance Size: W93 x H155 x D75cm (Size after exporting wood case packaged > W120 x H170 x D84cm)

Industrial high Efficient Air Cleaning & Cooling Device
Product Features:
* Power saving and environmental friendly > power consumption per hour of the product / one NT dollars for industrial electricity.
* Environmentally friendly > it can last for 15 years in a normal operation. High quality and low breakdown rate.

a) Fan motor is equipped with temperature overload protection system, submerge pump with water and power alarm / warming / system and auto water supply apparatus.
b) Particles and dust in the environment has been absorbed and drained by the patent structure of the comb-type cooling switch board. > washing.
c) Easy installation, no special skill required, and it can easily move, turn directions, fix or hang.
