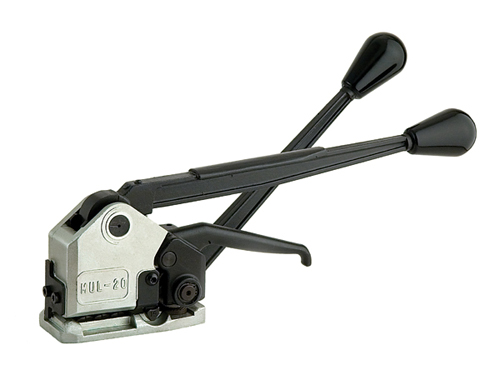

Sealless Combination Tool for Steel Strapping

Sealless Combination Tool for Steel Strapping

Model:

MUL-20

Country of Origin:

U.S.A.

Detail Specifications / Descriptions
• MUL-20 Sealless Combination Tool eliminates the need for a separate tensioner, sealer and cutter
• For use with 1/2" x .020 to 3/4" x .025 (12 x 0.5 to 19 x 0.7mm) RD or HT strapping
• Easiest sealless combination tool to operate, adjust and maintain
• Original design based on 15 years of worldwide field use and feedback
• Triple-notch, highly efficient sealless joint
• Reversible dies for double life and 1/3 of the replacement cost
• Designed to minimize damage from accidental drops
• Lightweight and small footprint for universal operation
• Lifetime availability of parts and service

Specifications
MUL-20
Strap Type Steel - Regular Duty, High Tensile
Joint Type Sealless
Package Type Flat
Strap Width 1/2"-5/8"-3/4" / 13-16-19 mm
Strap Thickness (Regular Duty) 0.020" - 0.025" / 0.5-0.7 mm
Strap Thickness (High Tensile) 0.020" - 0.025" / 0.5-0.7 mm
Weight 8.5 lbs / 3.8 Kg

Supporting Materials
Brochure: MUL-20 Brochure (.pdf 156KB)

Operating Manual: MUL-20 Adjustment Manual (.pdf 149KB)

Schematic: MUL-20 Schematic & Part List (.pdf 240KB)

High Resolution Image: MUL-20 Strapping Tool (600x450 JPEG)
