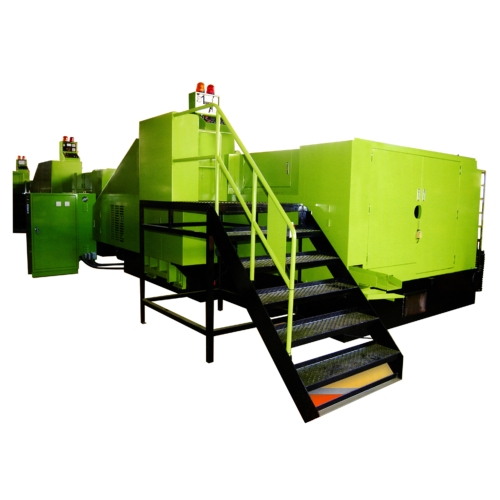

Long Stroke Nut Formers

Features:

1. Annealed body and basic, forged components are free from residual stress, which are sturdy, durable and stable when in operation.

2. One-piece-formed main slide is made of alloy steel imported from Germany. Tolerance of micro-adjustable protecting plate: 0.015-0.02mm.

--Cast iron protecting plate, with 2-3 hand-carved grooves on the surface, is well-lubricated, heat-dissipated and wear-resistant to protect main slide.

--High-precision main slide features stable and high capacity. Equipped with wear-resistant punches and dies, this model is durable and cost-efficient.

3. The HRC60, hard chrome-plated crankshafts on both sides of the nut former and main spindle in the center are made of alloy brass, which are durable, impact-proof, heavy-duty, and wear-resistant.

4. Well-organized punch table are easy to adjust and can be adjusted separately from left to right, up and down. Even an inexperienced operator can easily adjust/replace dies/punches.

5. Front kick-out mechanism is easy-to-operate and its movement can easily be synchronized with the reversing movement of main slide, which keeps work pieces in the dies.

6. The round, clean-cut section is vertical to feeding mechanism and cooperates with the forming process. Meanwhile, a non-reversible bearing is installed in the feeding mechanism to prevent material reversing, ensuring the stability of feeding mechanism.

7. Quick-change nut-clipping table and clip piece-positioning mechanism, plus adjustable lid on the shaft of clip pieces enhance nut former capacity.

8. Automatically controlled devices:
a.Overload ammeter
b.Material running-out detection
c.Product quantity-presetting detection
d.Kick-out detection
e.Lubricant shortage detection
f.Engine overheat detection
g.LCD RPM display
h.LCD interface control (optional)
i.Highly efficient motor, converter installation is optional
