Product Information - GU5.3 R/G/B/Y (3W 20° / 4.5W 20°)
|
Click for a larger picture
GU5.3 R/G/B/Y (3W 20° / 4.5W 20°)
|
| Product Description |
| Product Name: |
GU5.3 R/G/B/Y (3W 20° / 4.5W 20°) |
| Model: |
MR16 GU5.3 |
|
| > Detail Specifications / Descriptions |
‧MR16 GU5.3 R/G/B/Y
‧3W 20° / 4.5W 20°
‧Input Voltage : 10 ~ 14 VAC / VDCFeature:- High brightness
- Low temperature-Excellent thermal design
- Long life time

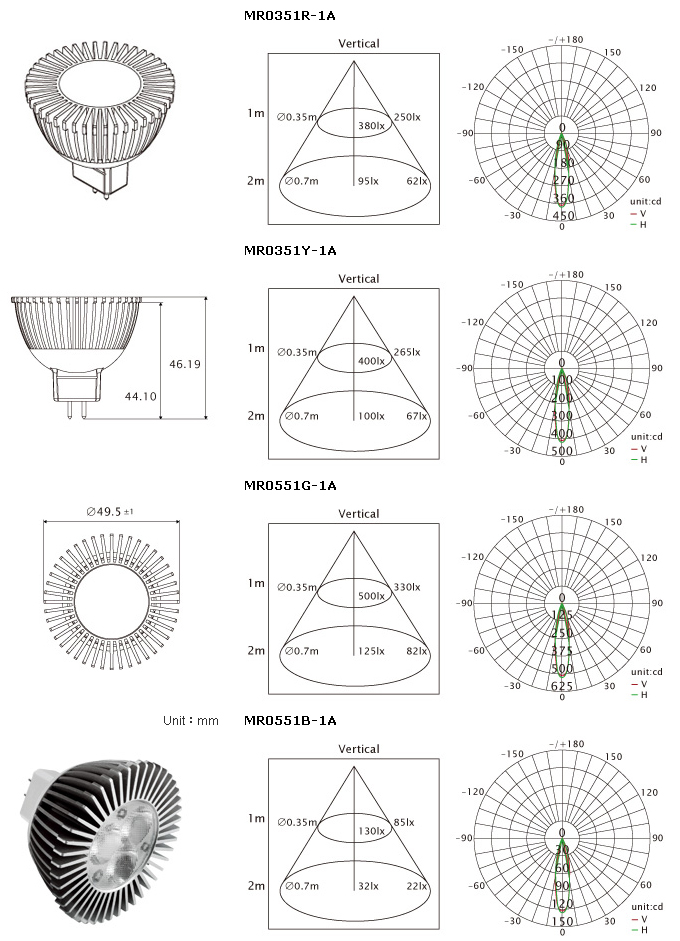

 | | | | | Unit: mm | | | | Model | MR0351R-1A | MR0351Y-1A | MR0551G-1A | MR0551B-1A | Voltage Range
| 10 ~ 14 VAC / VDC | 10 ~ 14 VAC / VDC | 10 ~ 14 VAC / VDC | 10 ~ 14 VAC / VDC | | Frequency Range | 50 / 60 HZ | 50 / 60 HZ | 50 / 60 HZ | 50 / 60 HZ | | Power Consumption | 3 W | 3 W | 4.5 W | 4.5 W | | Color | Red | Yellow | Green | Blue | | Dominant Wavelength | 624 nm | 592 nm | 525 nm | 470 nm | | Luminous Flux | 95 lm | 110 lm | 160 lm | 40 lm | | LED Lifetime | >40,000 hrs | >40,000 hrs | >40,000 hrs | >40,000 hrs | Illuminance at 1m
| 380 lux | 400 lux | 500 lux | 130 lux | | Beam Angle | 20° | 20° | 20° | 20° | | Body Material | Aluminum | Aluminum | Aluminum | Aluminum | | Operating Temperature | -20°C ~ +40°C | -20°C ~ +40°C | -20°C ~ +40°C | -20°C ~ +40°C | | Operating Humidity | 20~80% RH | 20~80% RH | 20~80% RH | 20~80% RH | | Ambient Temp.& Humidity | -30°C~+70°C
10~95%RH | -30°C~+70°C
10~95%RH | -30°C~+70°C
10~95%RH | -30°C~+70°C
10~95%RH | | Safety Standards | CE | CE | CE | CE | | Dimensions | 50 X 46 mm (DxH) | 50 X 46 mm (DxH) | 50 X 46 mm (DxH) | 50 X 46 mm (DxH) | | Weight | 42 g | 42 g | 42 g | 42 g |
| | |  | | |  | | Input: AC 100 ~ 240 V | | Output: DC 12 V 350 mA | | L: 72 mm | | W: 44 mm | | H: 23.2 mm |
|
|
|
|
