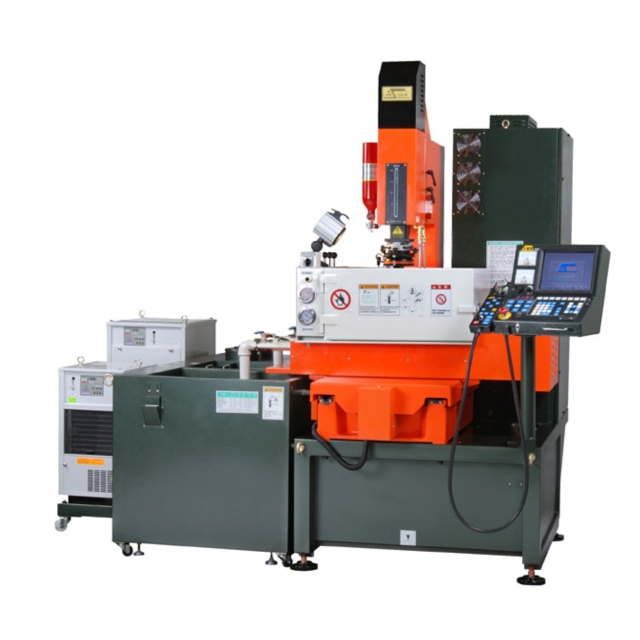

Silicon Powder & Fluid Switchable EDM

Silicon Powder & Fluid Switchable EDM

Model:

P60

Detail Specifications / Descriptions
Features:‧Using both powder and dishcarge fluid for CNC mirror surface finishing.
‧The X, Y& Z axis utilizes AC servo motor.
‧Multi cavities machinng, ORBIT-CUT machining & Helix machining.
‧A.T.C. (Automatic Tool change) & C-axis machining available.
‧The Circle Angle of Sparking is lower than 0.02mm.
‧The best surface roughness (Ra) is better than 0.1 µm.
‧High speed and long distance jumping
‧Multi-side ORBIT-CUT machining for X, Y & Z axis
‧Widespread application on plastic mold, rubber mold, die-casting mold, 3C products
‧Power machining enables high stability & efficiency 30% more than general electric discharge machining.
‧The work tanks of discharge fluid and powder are separated individually.


Specification P60
X, Y-Travel 400 x 300 mm
Z-Travel 300 mm
Table Dimension 600 x 320 mm
Work Tank Dimension 800 x 540 x 280 mm
Max. Table-Quill Distance 500 mm
Max. Electrode Weight 40 kgs
Max. Table Loading 800 kgs
Dielectric Tank Capacity 200 + 200 Litre
Filters 2 PCS
Machine Weight 2100 kgs
Machine Height 2240 mm
Nominal Current 30A / 5A, 45A / 5A, 60A / 5A
Input Voltage 220 / 380 / 415 / 440V
Connected Rating 4KVA / 5.5KVA / 7KVA
Max. Stock Removal Rate 200 / 300 / 400 mm³ / min
Best Surface Roughness Ra ≦0.1μm
Best Electrode Wear Rate < 0.2% ( specific equip.< 0.1%)
Standard accessories Additional Equipment
Precision Electrode Clamps ATC (Auto Tool Change)
Piezoelectric Light C-Axis
Magnetic Induction Oil Nozzle Base "EROWA" Chuck-Swiss
Operation Manuals 3R System Chuck-Sweden
M.F.D (Fine mirror Finish) Automatic Fire Extinguisher
Di-electric Cooler Charge Coupled Device (CCD)
Permanent Magnetic Chuck
Silicon Powder x 2 kg
X, Y, Z Axis Linear Scales (1μm)
Networking monitoring CNC machine (option)
