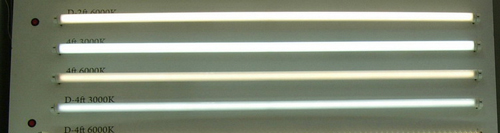

4 Foot TRIAC Dimmable LED Tube

4 Foot TRIAC Dimmable LED Tube

产品型号:
LF-TD4S240
原产地:
台湾
材质:
AL/PC

详细规格及用途描述

Features
TRIAC dimmable that works directly with traditional dimming switch
Able to dim the light output from as low as < 10% to full brightness without flicker
Over 60% of Power Saving ━ compare to traditional fluorescent light
Replace traditional T8/T9 fluorescent light tube directly ━ no modification required
Long lifespan over 40,000 hours and low maintenance ━ perfect for hard to reach area
Available with Warm White, Natural White, and Cool White to suite different applications
Low power, low heat, light weight and durable ━ great for any fixtures
Electronic Switching Power Supply for instant on, stable and durable power output
110V model works with 100 ~ 120VAC, 220V model works with 200 ~ 240VAC
Very linear light output throughout entire dimming range
Wide bean angle that mimics the effect of traditional fluorescent light
Environment friendly ━ contain no mercury, or any harmful materials
Polycarbonate housing that is durable and light weight and will resist crack or breakage
Low heat generation, and no UV or IR radiation, will not tarnish UV sensitive materials
Save electricity bill and protect earth at the same time

Specifications
Model No: LF-TD4S240
Flux: 1200 ~ 1600 lumen
No. of Element: 240 SMD Type LED’s
Power Consumption: < 18W
Beam Angle: > 140º
Working Voltage: 100 ~ 120VAC or 200 ~ 240VAC
Color Temperature:
3000 ± 500K (Warm White)
4000 ± 500K (Natural White)
5500 ± 500K (Cool White)
Lifespan: > 40,000 hrs
Lumen Maintenance: L70 @ 20,000 hrs
Dimensions (cm): Φ 28mm, L 1195mm (without pins)

Environmental
Operating Temp: -20° to 50°C (-4° to 122°F)
Storage Temp: -20° to 70°C (-4° to 158°F)
Operating Humidity: 10% to 80% RH, non-condensing
Storage Humidity: 10% to 90% RH, non-condensing
