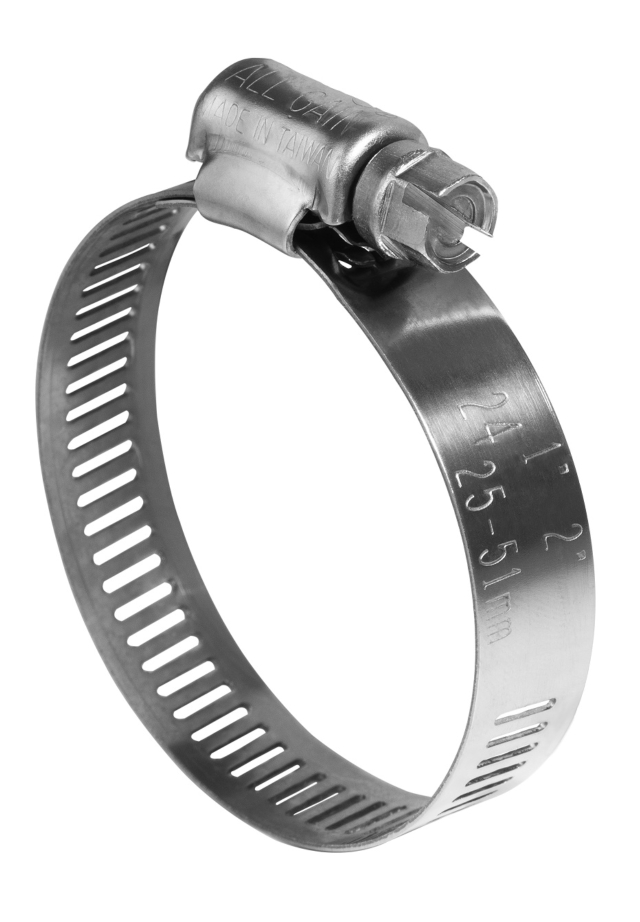

Worm Drive Hose Clamp

Worm Drive Hose Clamp

详细规格及用途描述

Worm Drive Hose Clamps

American standard worm drive hose clamps are the most common and widely used type of hose clamp in the clamp series.  They are mainly suitable for common household and automotive applications.  The key features of American standard hose clamps are the clean and tidy perforations on the straps, sturdy and lightweight materials, and easy installation.

All Gain products encompass the entire process from research and development, mold creation, and production, to packaging, providing a one-stop service. If you have any custom requirements, please feel free to contact us.

Detail Specifications

The materials for the housing, band, and screw of the hose clamp can be customized according to your needs.  Please indicate your requirements in your email, and our sales representative will be happy to assist you.

Worm Drive Hose Clamps



Diameter Range



Packing / CTN

No.

Inch

mm

Galvanized

AISI
430

AISI
304

pcs

G.W.

cu.ft.

Min.
to Max.

Min.
to Max.

Mini clamp with 8mm wide band

8A-4

1/4” - 5/8"

6-16

0.6

0.6

0.5

2000

14.7

0.85

8A-6

5/16" - 7/8"

8-22

0.6

0.6

0.5

2000

14.7

0.85

8A-8

7/16" - 1

11-25

0.6

0.6

0.5

2000

14.7

0.85

8A-10

1/2" - 1 1/16”

13-27

0.6

0.6

0.5

2000

14.7

0.85

Regular clamp with 12.7mm or 14.2mm band

A-8

7/16" - 1"

11-25

0.7

0.65

0.6

1,000

19.3

1.3

A-10

1/2" - 1 1/16"

13-27

0.7

0.65

0.6

1,000

19.5

1.3

A-12

1/2" - 1 1/4"

13-32

0.7

0.65

0.6

1,000

20

1.3

A-16

1 1/16" - 1 1/2"

18-38

0.7

0.65

0.6

1,000

21.1

1.7

A-20

3/4" - 1 3/4"

19-44

0.7

0.65

0.6

1,000

23.2

2.1

A-24

1" - 2"

25-51

0.7

0.65

0.6

1,000

24.3

2.3

A-28

1 1/4" - 2" 1/4"

32-57

0.7

0.65

0.6

1,000

27.4

2.8

A-32

1 1/2" - 2" 1/2"

38-64

0.7

0.65

0.6

1,000

29.6

3.2

A-36

1 3/4" - 2" 3/4"

44-70

0.7

0.65

0.6

1,000

31.7

3.8

A-40

2" - 3"

51-76

0.7

0.65

0.6

500

17.2

2.3

A-44

2 1/4" - 3 1/4"

57-82

0.7

0.65

0.6

500

18.3

2.5

A-48

2 1/2" - 3 1/2"

64-89

0.7

0.65

0.6

500

18.4

2.8

A-52

2 3/4” ━ 3 3/4”

70-95

0.7

0.65

0.6

500

19.5

3.0

A-56

3" - 4"

76-101

0.7

0.65

0.6

500

19.6

3.2

A-60

3 1/4" - 4 1/4"

83-108

0.7

0.65

0.6

500

21.4

3.2

A-64

2 1/2" - 4 1/2"

64-114

0.7

0.65

0.6

500

21.5

3.2

A-72

3" - 5"

76-127

0.7

0.65

0.6

250

12.0

3.2

A-80

3 1/2" - 5 1/2"

89-140

0.7

0.65

0.6

250

13.0

3.9

A-88

4" - 6"

102-152

0.7

0.65

0.6

250

14.0

4.5

A-96

4 1/2” - 6 1/2"

114-165

0.7

0.65

0.6

250

15.0

4.5

A-104

5" - 7"

127-178

0.7

0.65

0.6

250

16.0

4.5

Worm Drive Hose Clamp
