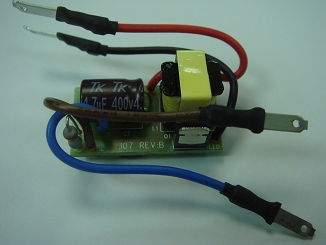

I070球燈泡發光二極體LED驅動器
- 產品型號:
- I070
- 原產地:
- 台灣
詳細規格及用途描述
ELECTRICAL SPECIFICATIONS :
INPUT
Input voltage : 100-240Vac
Input frequency : 47 - 63 Hz
Input current : 0.4Arms max.
Efficiency : 85~93% typical at full load
OUTPUT
Output rating : as rating charts
Line regulation : 1%
Load regulation : 5%
Constant current tolerance : 5%
Ripple & noise Vp-p : 10% max.
Output power : as rating chart
ENVIRONMENT
Operating : full load -20-50℃ convection
Non-operating : -20-85℃
Shock : MIL-STD-610C 516 Part V
Vibration : 10-500 Hz. 16 mins/cycle/axis
FEATURE
Low cost
High efficiency
Non-isolated
Small size
DIMENSION : 29x15x16mm
ITEM Model No. Output Io max. Eff.
1 I070-240 18~24V 266mA >85%
2 I070-300 24~30V 233mA >88%
3 I070-360 30~36V 200mA >88%
4 I070-450 36~45V 170mA >90%
5 I070-560 45~56V 150mA >92%
6 I070-680 57~68V 135mA >93%
Remark : Io can be set below the max.
