半六角

半六角

產品型號:
HD CL
原產地:
台灣
材質:
Stainless Steel

詳細規格及用途描述

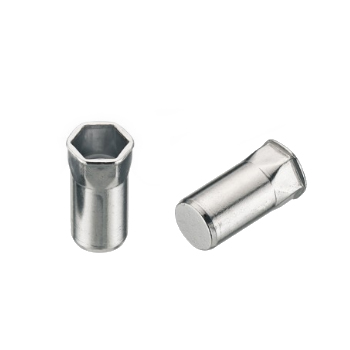

Semi-Hexagonal Threaded Insert, Flat Head, Closed Type
We have rich experience in manufacturing Semi-Hexagonal Threaded Inserts, Rivets, Stainless Steel Rivets, Rivet Nuts, Blind Rivet Nut and Blind Rivets System.

PART NO.: SS.HD4-CL
THREAD SIZE: M4x0.7
GRIP RANGE: 0.5-2.5
HOLE SIZE+0.1/-0: 6.00
A±0.3: 6.80
B max.: 5.97
C±0.3: 16.00
H±0.2: 0.50

PART NO.: SS.HD5-CL
THREAD SIZE: M5x0.8
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 7.00
A±0.3: 8.00
B max.: 6.97
C±0.3: 18.00
H±0.2: 0.60

PART NO.: SS.HD6-CL
THREAD SIZE: M6x1.0
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 9.00
A±0.3: 10.00
B max.: 8.97
C±0.3: 21.00
H±0.2: 0.60

PART NO.: SS.HD8-CL
THREAD SIZE: M8x1.25
GRIP RANGE: 0.7-3.0
HOLE SIZE+0.1/-0: 11.00
A±0.3: 12.00
B max.: 10.97
C±0.3: 23.50
H±0.2: 0.60

PART NO.: SS.HD10-4.5-CL
THREAD SIZE: M10x1.5
GRIP RANGE: 1.0-4.5
HOLE SIZE+0.1/-0: 13.00
A±0.3: 14.10
B max.: 12.97
C±0.3: 29.00
H±0.2: 0.80

PART NO.: SS.HD10-6.0-CL
THREAD SIZE: M10x1.5
GRIP RANGE: 4.5-6.0
HOLE SIZE+0.1/-0: 13.00
A±0.3: 14.00
B max.: 12.97
C±0.3: 31.00
H±0.2: 0.80
