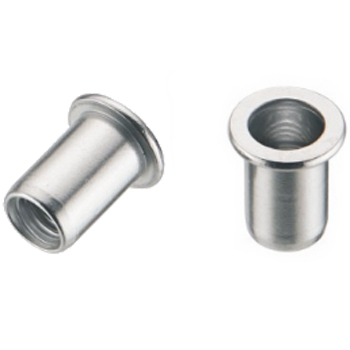

Flat Head Rivet Nut

Flat Head Rivet Nut

產品型號:
A.FN
原產地:
台灣
材質:
Aluminum

詳細規格及用途描述

We are professional manufacturer of Aluminum Rivets. Our Aluminum Rivet Nuts is designed to meet your specific technical and performance requirements.

PART NO.: A.FN632
THREAD SIZE: 6-32
GRIP RANGE: 20-80
HOLE SIZE+0.1/-0: 189
A±0.3: 325
B max.: 189
C±0.3: 470
H±0.2: 0.31

PART NO.: A.FN832
THREAD SIZE: 8-32
GRIP RANGE: 20-80
HOLE SIZE+0.1/-0: 221
A±0.3: 356
B max.: 220
C±0.3: 470
H±0.2: 0.31

PART NO.: A.FN1024-80
THREAD SIZE: 10-24
GRIP RANGE: 20-80
HOLE SIZE+0.1/-0: 250
A±0.3: 406
B max.: 250
C±0.3: 569
H±0.2: 0.37

PART NO.: A.FN1024-130
THREAD SIZE: 10-24
GRIP RANGE: 80-130
HOLE SIZE+0.1/-0: 250
A±0.3: 406
B max.: 250
C±0.3: 632
H±0.2: 0.37

PART NO.: A.FN1/4-80
THREAD SIZE: 1/4-20
GRIP RANGE: 20-80
HOLE SIZE+0.1/-0: 332
A±0.3: 472
B max.: 331
C±0.3: 685
H±0.2: 0.59

PART NO.: A.FN1/4-140
THREAD SIZE: 1/4-20
GRIP RANGE: 80-140
HOLE SIZE+0.1/-0: 332
A±0.3: 472
B max.: 331
C±0.3: 744
H±0.2: 0.59

PART NO.: A.FN1/4-200
THREAD SIZE: 1/4-20
GRIP RANGE: 140-200
HOLE SIZE+0.1/-0: 332
A±0.3: 472
B max.: 331
C±0.3: 807
H±0.2: 0.59

PART NO.: A.FN1/4-260
THREAD SIZE: 1/4-20
GRIP RANGE: 200-260
HOLE SIZE+0.1/-0: 332
A±0.3: 472
B max.: 331
C±0.3: 870
H±0.2: 0.59

PART NO.: A.FN5/16-125
THREAD SIZE: 5/16-18
GRIP RANGE: 30-125
HOLE SIZE+0.1/-0: 413
A±0.3: 665
B max.: 413
C±0.3: 811
H±0.2: 0.61

PART NO.: A.FN5/16-200
THREAD SIZE: 5/16-18
GRIP RANGE: 125-200
HOLE SIZE+0.1/-0: 413
A±0.3: 665
B max.: 413
C±0.3: 937
H±0.2: 0.61

PART NO.: A.FN3/8-115
THREAD SIZE: 3/8-16
GRIP RANGE: 30-115
HOLE SIZE+0.1/-0: 490
A±0.3: 780
B max.: 488
C±0.3: 929
H±0.2: 0.88
