多工電腦數值控制瑞士型走心機

多工電腦數值控制瑞士型走心機

產品型號:

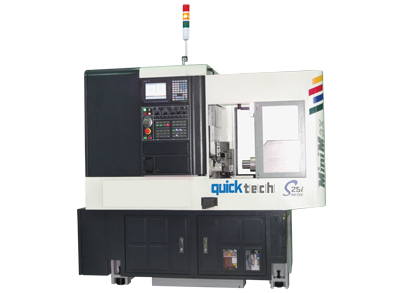

MiniMax S25i
原產地:
台灣

詳細規格及用途描述

This series offers the most efficient and cost-saving solution for mass production for 25mm complex parts, i.e medical parts, IT parts.

TOOLING SYSTEM
The tooling block consists of extensive 12mm or 16 mm turning and drilling tools. Maximum tooling capacity of 28 tools allows fast chip to chip times as there is very little movement from one tool to the next.

In addition, to meet the demand to produce complex parts, motorized tools are also provided as optional.

LINEAR GUIDEWAYS
The machine is equipped with high precision, HIWIN linear guideways.

The use of 25mm rails throughout the machine increases stability and accuracy, and allows heavier cuts to be achieved.

Axial view
The standard milling head comprises of 6 live tools. Capacity is ER16 collet with 0.5 kw gear drive. The head may be fitted to 8 live tools if any complex milling.

Workpiece
minimax25i
