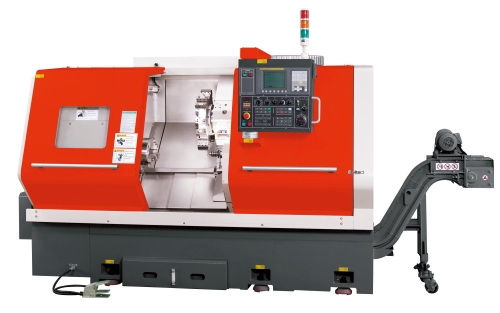

CNC SLANT-BED LATHE

CNC SLANT-BED LATHE

產品型號:
RIC-TC250L
原產地:
台灣

詳細規格及用途描述

Standard accessories:
* FANUC 0i-TD controller (8.4") COLOR TFT LCD
* Working Length:690mm
* Main spindle:Spindle nose: A2-6
* Spindle chuck: 10" hydraulic 3 jaws hollow chuck with cylinder
* Spindle bore:Ø77mm(3”)
* Bar capacity:Ø65mm(2.56”)
* Speed max.:3500rpm
* Motor:αP22i (11kw/15kw)
* AC servo motor:X-axis (α8Bi/1.6kW)、Z-axis (α8i/1.6kW)
* LS-240 12 station hydraulic turre (□ 25*25mm)
* X、Z-axis: Linear guideway
* 100 liter coolant tank
* 3 bar-750W coolant pump
* Programmable tailstock body and living center MT No. 4
* Chip conveyor with trolley bin
* Auto lubrication system
* Three color alarm light & Work light
* Tool box and tools
* Integrated hydraulic unit
* Heat exchanger for electrical cabinet
* Internal coolant system to turret
* 10" Soft jaw、hard jaw for main spindle
