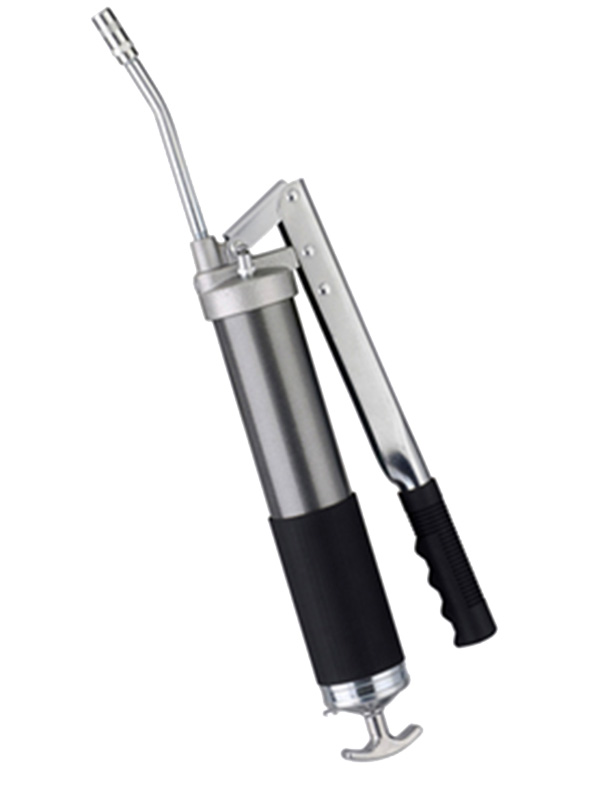

Dual Pistol Iron-Cast Grease Gun

Dual Pistol Iron-Cast Grease Gun

Hot
產品型號:
HT1202-029
原產地:
中國
材質:
Tube: Steel, Head: Steel
顏色:
Final detail to be provided on formal quotation sheet

詳細規格及用途描述

Features

Manually controlled
Allows users to operate the Grease-Gun in any environment
Lever bar to effortlessly project grease oil
With variable stroke function to enable operation in tight and narrow spaces
Provides full pressure regardless of long or short strokes

Description

Ergonomically-designed to allow easier access for users to in all kinds of situations
Suitable for both professional and home use
Ideal for constructional vehicle, machine, automobiles, farm and garden equipments, recreation vehicles etc

Specification

Standard Spout Equipped:
HA-403A Bend Spout
Finish:
Gun Head: Oven Painted
Container Tube: Oven Painted
Pressure Range:
Working Pressure: 3600 psi (248 bar) (253 kgf /cm²)
Burst Pressure: 6000 psi (414 bar) (422 kgf /cm²)
Volume (per stroke):
2.15c.c.
Loading Ways:
Cartridge, Dispenser, Bulk
Capacity:
Cartridge Loading: 14 o.z.
Bulk Loading: 400c.c.

Additional spare accessories with functions available:

HA-401 Series
Heavy-duty and high performance flexible nylon hose
Attached with grease coupler and ball check
Steel reinforced high pressure nylon hose and heavy-duty chassis
Working Pressure: 4,500 psi
Burst Pressure: 10,000 psi

HAW-401 Series
Heavy-duty high performance flexible nylon hose
Attached with grease coupler and ball check
Strategically placed coil spring provides non-slip, push-pull grip and prevents accidental “Kinking” which could cause hose ruptures
Working Pressure: 4,500 psi
Burst Pressure: 10,000 psi

HA-404 Series
Working Pressure: 2,150 psi
HA-404A / Legth: 115mm
HA-404B / Legth: 250mm
HA-404C / Legth: 450mm

HA-403A HA403-B
Attached with grease coupler and ball check
Working Pressure: 4,500 psi
Burst Pressure: 10,000 psi
HA-403A-Metallic Bend Spout
HA-403B-Metallic Straight Spout

HA-405H HA-405R HA-406H
Working Pressure: 4,500 psi
Burst Pressure: 10,000 psi
HA-405H: 4 jaws
HA-405R: 4 jaws
HA-406H: 3 jaws
(refer to Accessories Available pic)

Dual Pistol Iron-Cast Grease Gun
