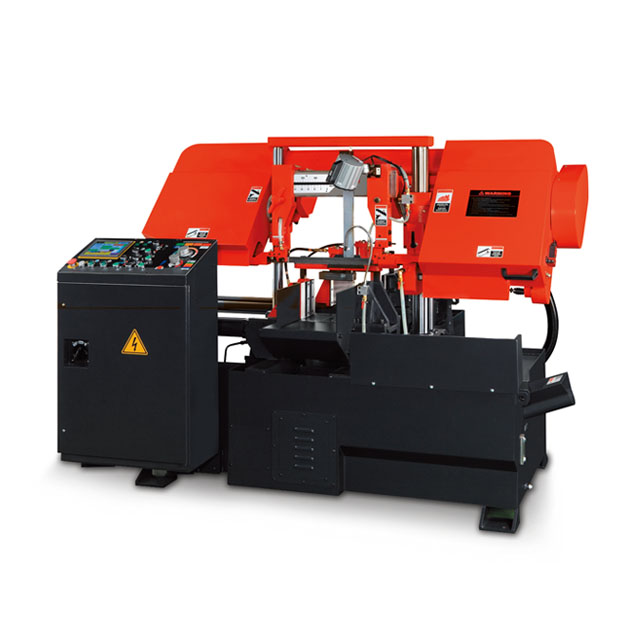

12” Double Column Automatic Bandsaw
Hot- 產品型號:
- MW0601-017
- 原產地:
- 台灣
- 材質:
- To be advised
- 顏色:
- Final detail to be provided on formal quotation sheet
詳細規格及用途描述
Features
Color touch screen equipped with LED backlight module makes the display of automatic band saw clearer
Hydraulic blade tension device maintains the preset blade tension, absorbing blade expansion which is common during cutting
Hydraulic motor drives automatic chip conveyor device
Ideal for cutting the round work pieces
Description
Blade speed is controlled by motor inverter
Rotary encoder measures the feeding length
All OEM / ODM welcome
Specifications
Cutting Capacity (H x W): ● 300 mm █ 300 x 300 mm
Blade Size: 34 x 1.1 x 3920 mm
Blade Speed: 30~85 MPM
Blade Motor: 5 HP
Hydraulic Motor: 1 HP
Packing Size (L x W x H): 2210 x 2110 x 1720 mm
N.W. / G.W.: 1560/ 1765 KGS

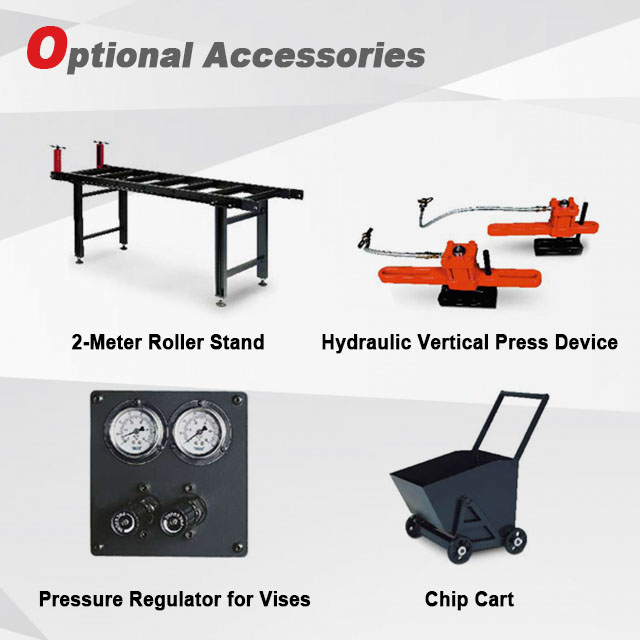

Optional Accessories:
2-meter roller stand
Hydraulic vertical press device
Pressure regulator for vises
Chip cart
The product pictures are for your reference only: final spec & accessories based on formal quotation
