基業實業有限公司

產品資訊： Electric Winch GG-200

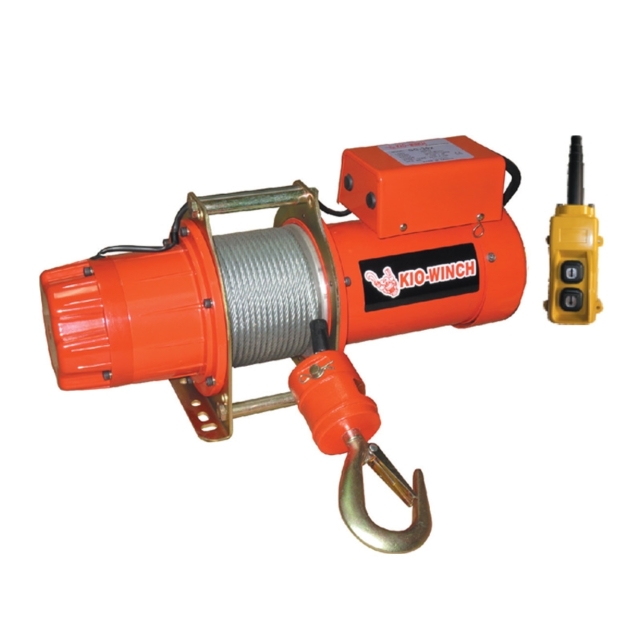

Electric Winch GG-200
點擊照片放大
Electric Winch GG-200
 產品基本描述
產品名稱： Electric Winch GG-200
型號： n/a
產地： 台灣


> 詳細規格及用途描述
FEATURES
● Positive retention of wire rope on to drum
● Electromagnetic spring-applied fail safe brake
● Heavy duty high efficiency ball bearing on all running surfaces
● Planetary gearing for maximum mechanical efficiency
● Enclosed drum flanges
● Quiet running
● Heavy duty IP65 waterproof switch K213A with emergency stop as an option

SPECIFICATION
Lifting Capacity (top layer) : 200 kg
First Layer Speed: 12 m/min
Top Layer Speed: 18 m/min
Motor Rating IP44 : 0.75 HP × 4 poles
Maximum Lifting Height : 29 m
Wire Rope : 6 mm × 30 m
Drum Barrel Diameter: 94 mm
Drum Flange Diameter: 154 mm
Distance between Flanges: 118 mm
Note : Above performance ratings are based on 50 Hz supply. (60 Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%)

1. All ratings are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
2. Use a snatch block for double line operation、to increase line pull by approximately 85%

Electric Winch GG-200
