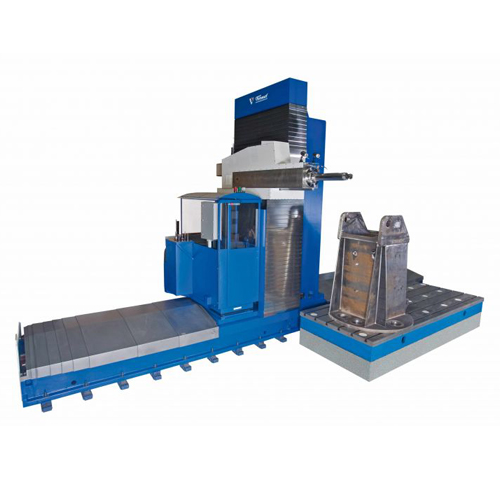

Floor-type Horizontal Boring Machine WRF 130 CNC

Floor-type Horizontal Boring Machine WRF 130 CNC

產品型號:
WRF-130

詳細規格及用途描述

One of the main characteristics of the Floor-Type Horizontal Boring Mill WRF 130 CNC, with a Movable Slide Ram and a Movable Life Spindle, is its distinctive effectiveness and its user-friendliness. Its large variation of selectable parameters is combined with its broad offering of operating functions. Its main feature is a Modular Concept that allows great production variability and rapid setup through the use of Peripheral Tools and Accessories.

The machine moves in 4 different axes (X, Y, Z, W). An additional B and/or V-axis is created when the Rotary Table is added to the machine. Several Clamping Plates can be joined together, or in combination with a Rotary Table to achieve specialized confi gurations, easily and quickly.

The basic model of the machine comes with a HEIDENHAIN iTNC 530 System, HEIDENHAIN Scales, and HEIDENHAIN and SIEMENS Servomotors. Workpieces can be clamped either on the Additional Rotary Table, on the Clamping Plates, or using both of these possibilities. The main working purpose of the machine is chip removal from spacious and weighty steel, cast steel, or cast iron workpieces. The machine’s technology allows its wide utilization in milling, boring, reaming, and threading processes.




Spindle Diameter
Ф130
mm


Spindle Taper
DIN 69871
ISO 50


Pull Studs
DIN 69872



Spindle RPM
10-3 000
rpm


Maximum Spindle Torque (S1 Continuous)
2 000
Nm


X-Axis
2 400 <
mm


Y-Axis
2 000, 2 500, 3 000, 3 500, 4 000
mm


Ram Travel - Z-Axis
900
mm


Spindle Travel - W-Axis
730
mm


Rapid Travers X-Axis, Y-Axis
1 - 15 000
mm/min


Rapid Travers Z-Axis, W-Axis
1 - 10 000
mm/min


Spindle Motor Power (S1 Continuous)
37
kW


Positioning Accuracy X, Y, Z, W
±0.01
mm


Repeatable Positioning Accuracy X,Y,Z, W
±0.005
mm


Machine Dimension(L x W × H) (for X=6200mm)
11 500 × 3 700 x 5 200
mm


Maximum power consumption
85
kVA


Coolant Through Spindle
10, 20, 30, 50
bar


Outside Coolant Pressure
3
bar


Outside Coolant Quantity
1800
l/h


Outside Coolant Tank
2000
l
