1.5 OZ

Model
Unit
J2-S


Injection Unit
Screw Dianter
MM
25
28

Injection Pressure
kg/cm²
1432
1142

Theoretical Shot Vlume
cm³
49
61
Max. Shot Weight (PS)
G / OZ
45 / 1.5
56 / 2

Max. Shot Weight (PS)
cm³ / sec
36
46
Injection Rate
MM
100
Screw Speed Max.
RPM
0-150
Nozzle Comtact Force
ZONE
2
Number of Temperater Control
L
15

Clanping Unit
Clamping Foce
T
12
Opening Force
T
2

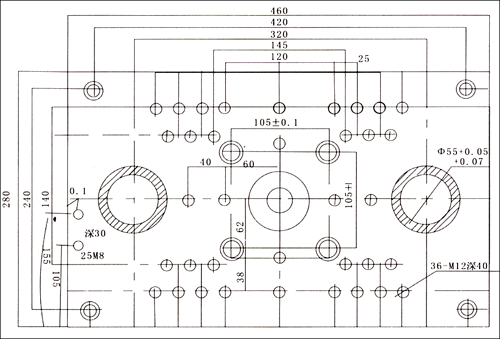

Platen Size
MM
430 x 250
Distance Between Tie Bere
MM
250
Min. Mold Heigh
MM
40
Opening Stroke
MM
160
Max. Open Dayinght
MM
200
Ejector Power
T
1
Ejector Stroke
MM
32

Hydraulic/
Electricity Unit
Max. Hydraulic Pressure
kg / cm²
140
Pump Output
L / MIN
19
Oil Presservoir Capacity
L
80
Cooling Eaer Consumotion
L
400-600
Pump Motor Power
HP
2.2/3
Berrel Heating Power
KW
2
Total Weight
KW
4.5

Others
Machine Weight
T
0.7
Machine Dimensions (LxWxH)
M
1.25 x 0.85 x 2.1
Shipping Weight
T
0.9
Shipping Measurements (LxWxH)
M
1.6 x 1.0 x 2.25
