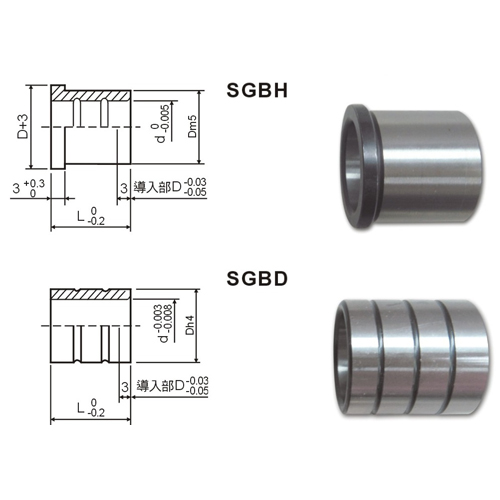

Guide Bush
- Model:
- SGBH, SGBD
- Country of Origin:
- Taiwan
- Material:
- SUJ-2
Detail Specifications / Descriptions
Dm5 | CODE | d | T | L | ||||||||
10 | 13 | 16 | 20 | 25 | 30 | 35 | 40 | |||||
12 | +0.015 | SGBH | 8 | 3 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
14 | 10 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
18 | 13 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
22 | +0.017 | 16 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||
25 | 20 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
32 | +0.020 | 25 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||
○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||
Dh4 | CODE | d | L | ||||||||
10 | 13 | 16 | 20 | 25 | 30 | 35 | 40 | ||||
12 | 0 | SGBD | 8 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
14 | 10 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||
18 | 13 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||
22 | 0 | 16 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
25 | 20 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||
32 | 0 | 25 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
