Touch Counters

Touch Counters

Model:
N5CR

Detail Specifications / Descriptions

‧Digital timers
‧Seven day multipletime range controller, with six ON/OFF cycles.


Catalog Download




‧Features:


A built-in Ni-Cd rechargable battery; a touch timer can memorize info in event of power failure
10mm width LCD panel display
Count up/countdown function
Button-locked design, preventing improper operation
Multiple time ranges for selection, suitable for a wide array of applications
Sealed membrane button, dustproof and humidity-proof
Various input/output time operation methods, suitable for various products
Superior quality and reliable

‧Applications:

Baking ovens
Food processing machinery
General consumer electrical appliances
Ozone machines
Various testing equipment
Automated machinery



‧Specifications:






‧Standard Voltage




AC/DC 12V,110VAC, 240VAC, 415VAC



AC/DC 24V,220VAC, 380VAC, 440VAC





‧Machinery Durability: 5 X 10 6 times


‧Electrical Appliances Durability 10 5


‧Power Exhaust: AC:about3W DC:about 3W


‧Connection Capacity




Thermal(lth): 16A/250V AC



Resistive Load: 16A/250V AC



Lighting Load :8A/250V AC



Direct Current 1A/24V DC





‧Operating Temperature: -10°C~+50°C


‧Operating humidity 45 ~ 85%RH


‧Weight : about 60g


‧Dimensions : (HxWxD) 48 x 48 x 78 mm


‧Mounting hole dimensions : 45 x 45 mm


‧With fully charged batteries,the timeer can operate 500 hours in the event of powerfailure.







‧Socket View :



Module GSingle click trigger-on model

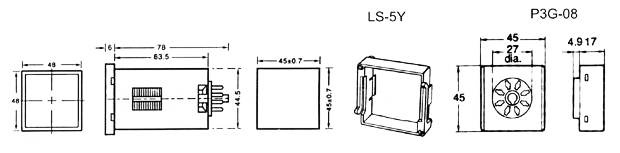

‧Dimensions :
