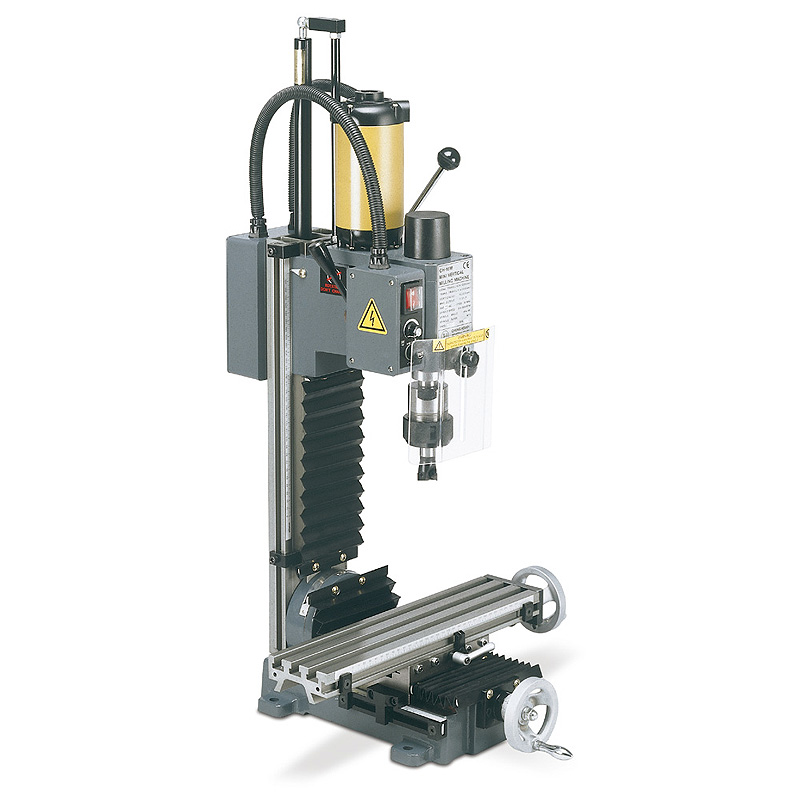

Mini Vertical Milling Machine
Mini Vertical Milling Machine

Model:CH-10M

Detail Specifications / Descriptions

The milling machine can be tilted sideways (45 degrees)
Can be installed with an optical scale
Longitudinal (X)

Longitudinal (X) Axis : 228mm (9")
Cross (Y) Axis : 100mm (4")
Vertical (Z) Axis : 215mm (8")
Max. Output : 500W (DC motor)
Spindle Speed : 300-2900 r.p.m
Worktable Size : 100mm x 400mm
Spindle Taper : M.T.NO.3
T Slot : 12mm (1/2")
Spindle Nose to Table : 300mm (1/2")
Drilling Capacity (Max.) : 13mm (1/2")
End Milling Capacity (Max.) : 13mm (1/2")
Face Milling Capacity (Max.) : 20mm (3/4")
Machine Dimensions : 730mm x 510mm x 890mm (L x W x H)
Packing

Net weight: 37kgs
Gross weight: 41kgs
7.1'cu. Ft.
540mm x 520mm x 720mm (L x W x H)
*Made in Taiwan and exported to Japan and Europe.
*Leading brand, quality guaranteed.
*The best after-sales service and reasonable prices .
