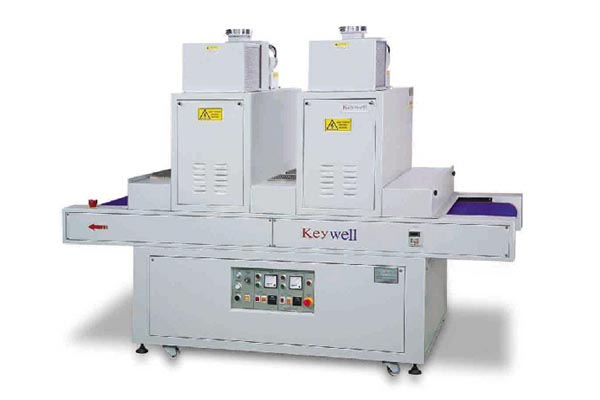

UV Conveyor Dryer (Low Temprature Type)

Low temperature design is most suitable for curing heat sensitive material such as sticker, PVC sheet, FPC board, polyester, film…etc.

Product Feature
1. Using metal halide UV lamp, high UV energy output.
2. Low temperature design, middle mezzanine with ventilation cooling system to reduce the temperature of UV oven. The height
of UV lamp is adjustable, suitable for heat sensitive substrates.
3. Digital read out for belt speed.
4. UV section is with vacuum hold-down to prevent substrate from fluttering.
5. Tri-power lamp switch for different printing materials.
6. UV lamp with time accumulated meter, it’s for easy understanding UV lamp useful life.
7. Control Panel: Easy to operate, including: power switch, UV lamp switch, Tri-power switches, current meter for each lamp, accumulating timer for each lamp, over temperature indicator, emergency switch.
8. Complete safety device: Emergency stop button, electric leakage auto blackout switch.
