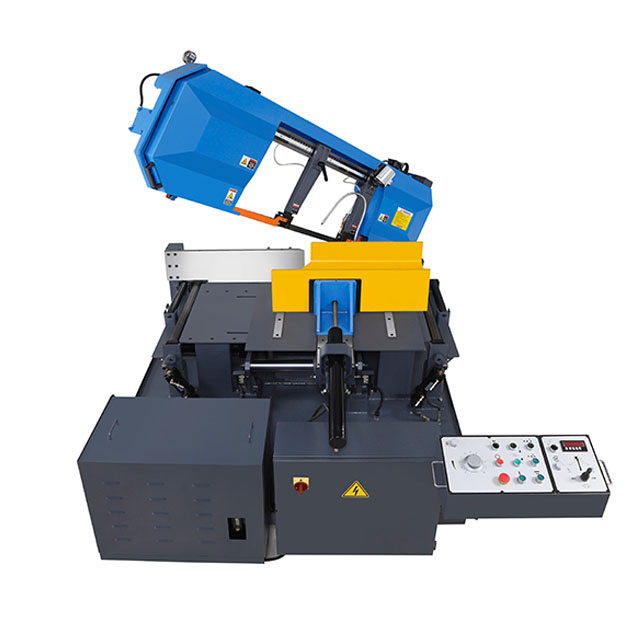

Dual Miter Semi-Automatic Bandsaw
Dual Miter Semi-Automatic Bandsaw Hot

Model:MW0603-022 Country of Origin:Taiwan Material: To be advised Color:Final detail to be provided on formal quotation sheet

Detail Specifications / Descriptions

Features

Dual-direction miter cutting 0°~60°of metal band saw
Mechanical variable speed device
Digital bow angle and blade speed readout
Hydraulic power for saw bow and vise movement of auto-shift

Description

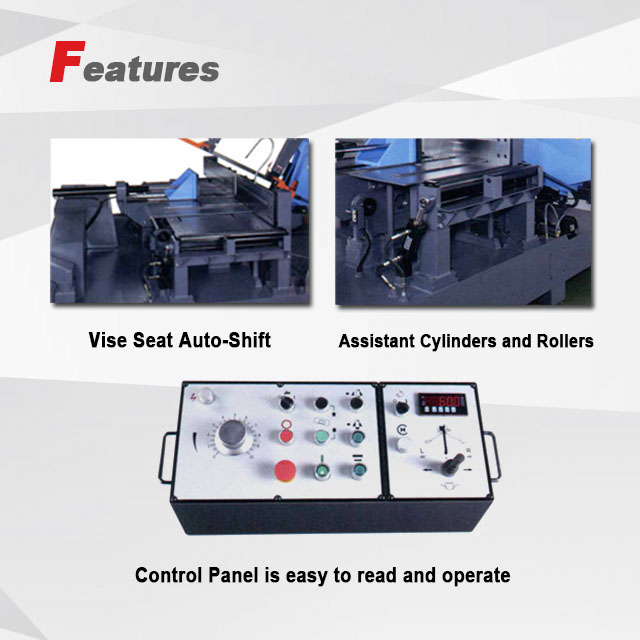

Control Panel is easy to read and operate. Bow angle setting is operated by joystick
Milter band saw equipped with assistant cylinders and rollers to help feeding easily when vise opens
Vise seat will be auto-shift to proper location when bow turns to opposite side (R-L or L->R)

Specifications

Cutting Capacity:
(1) 90° ● 460 mm █ 460 mm ██ 440 x 600 mm
(2) 45° (R/L) ● 445 mm █ 445 mm
(3) 60° (R/L) ● 295 mm █ 295 mm
Blade Speed: 32~96 MPM (106~317 FPM)
Blade Size: 41x 1.3x 5430 mm
Blade Motor: 5 HP
Hydraulic Motor: 1 HP
Packing: 2760 x 2050 x 1700 mm
N.W.: 2260 KGS
The product pictures are for your reference only: final spec & accessories based on formal quotation
